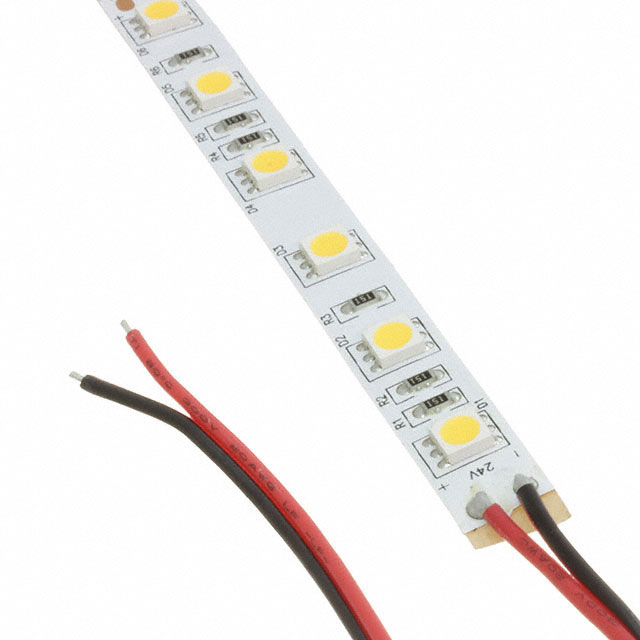

ZFS-245000NW

Active

JKL Components Corp.

LED ENG WHT LNR STRIP 4300K 5M

Search across all available documentation for this part.

Active

JKL Components Corp.

LED ENG WHT LNR STRIP 4300K 5M

Technical Specifications

Parameters and characteristics for this part

Specification	ZFS-245000NW

CCT (K) [Max]	4300 K
CCT (K) [Min]	3800 K
Color	Neutral, White
Configuration	Linear Light Strip, Flexible
Current - Test	2.8 A
Height [z]	2.08 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	67 lm/W
Luminous Flux @ Current/Temperature	4525 lm
Size / Dimension [x]	5000 mm
Size / Dimension [y]	10 mm
Type	LED Engine
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	24 V

Part	CCT (K) [Min]	CCT (K) [Max]	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Lumens/Watt @ Current - Test	Lens Type	Current - Test	Luminous Flux @ Current/Temperature	Height [z]	Viewing Angle	Color	Configuration	Type
JKL Components Corp. ZFS-245000CW	10000 K	12000 K	24 V	10 mm	5000 mm	58 lm/W	Flat	2.8 A	3900 lm	2.08 mm	120 °	Cool White	Flexible Linear Light Strip	LED Engine
JKL Components Corp. ZFS-245000NW	3800 K	4300 K	24 V	10 mm	5000 mm	67 lm/W	Flat	2.8 A	4525 lm	2.08 mm	120 °	Neutral White	Flexible Linear Light Strip	LED Engine

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Engine - White, Neutral Linear Light Strip, Flexible
