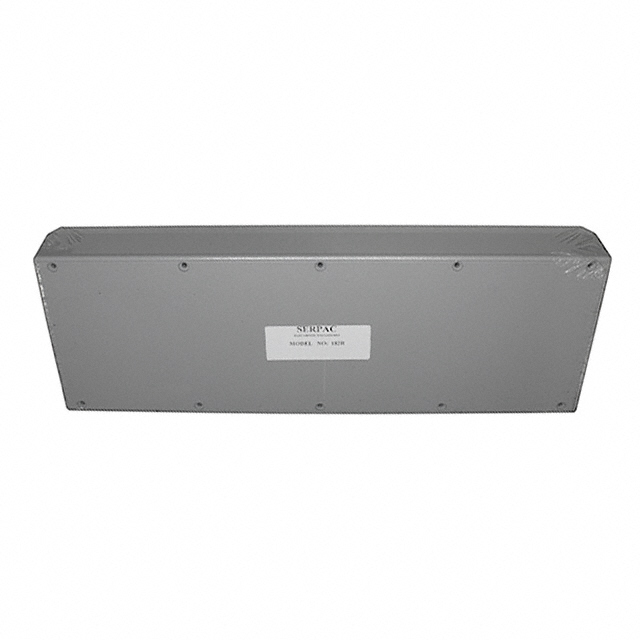

182R,GY

Active

Serpac

BOX ABS GRAY 14.21"L X 4.88"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 14.21"L X 4.88"W

Technical Specifications

Parameters and characteristics for this part

Specification	182R,GY

Area (L x W)	69.3 in²
Area (L x W)	447 cm²
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	Front Access, PCB Supports
Height [z]	50.8 mm
Height [z]	2 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	14.21 in
Size / Dimension [x]	360.93 mm
Size / Dimension [y]	123.95 mm
Size / Dimension [y]	4.88 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	420.93 g
Weight	0.928 lb

Part	Ratings	Height [z]	Height [z]	Container Type	Design	Material	Color	Area (L x W)	Area (L x W)	Features	Thickness	Thickness	Material Flammability Rating	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Weight	Weight
Serpac 182RI,GY	IP40 NEMA 1	50.8 mm	2 in	Box	Hand Held Split Sides	Plastic ABS	Gray	69.3 in²	447 cm²	Front Access PCB Supports	2.54 mm	0.1 in	UL94 HB	14.21 in	123.95 mm	360.93 mm	4.88 in	420.93 g	0.928 lb
Serpac 182RI,AL	IP40 NEMA 1	50.8 mm	2 in	Box	Hand Held Split Sides	Plastic ABS	Almond	69.3 in²	447 cm²	Front Access PCB Supports	2.54 mm	0.1 in	UL94 HB	14.21 in	123.95 mm	360.93 mm	4.88 in	420.93 g	0.928 lb
Serpac 182RI,BK	IP40 NEMA 1	50.8 mm	2 in	Box	Hand Held Split Sides	Plastic ABS	Black	69.3 in²	447 cm²	Front Access PCB Supports	2.54 mm	0.1 in	UL94 HB	14.21 in	123.95 mm	360.93 mm	4.88 in	420.93 g	0.928 lb
Serpac 182R,AL	IP40 NEMA 1	50.8 mm	2 in	Box	Hand Held Split Sides	Plastic ABS	Almond	69.3 in²	447 cm²	Front Access PCB Supports	2.54 mm	0.1 in	UL94 HB	14.21 in	123.95 mm	360.93 mm	4.88 in	420.93 g	0.928 lb
Serpac 182R,BK	IP40 NEMA 1	50.8 mm	2 in	Box	Hand Held Split Sides	Plastic ABS	Black	69.3 in²	447 cm²	Front Access PCB Supports	2.54 mm	0.1 in	UL94 HB	14.21 in	123.95 mm	360.93 mm	4.88 in	420.93 g	0.928 lb
Serpac 182R,GY	IP40 NEMA 1	50.8 mm	2 in	Box	Hand Held Split Sides	Plastic ABS	Gray	69.3 in²	447 cm²	Front Access PCB Supports	2.54 mm	0.1 in	UL94 HB	14.21 in	123.95 mm	360.93 mm	4.88 in	420.93 g	0.928 lb

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.30

General part information

Box Plastic, ABS Gray Hand Held, Split Sides 14.210" L x 4.880" W (360.93mm x 123.95mm) X 2.000" (50.80mm)

Technical documentation and resources

No documents available
