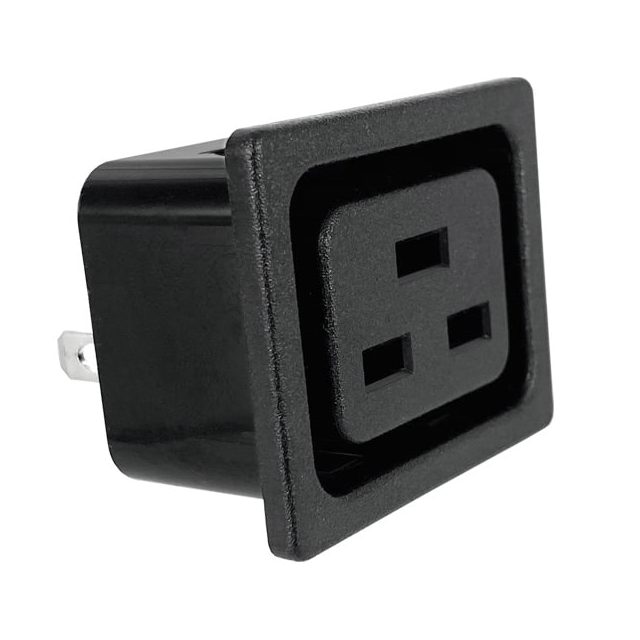

746W-15/07
ActiveQualtek
PWR ENT RCPT IEC320-2-2J PNL QC
Deep-Dive with AI
Search across all available documentation for this part.
746W-15/07
ActiveQualtek
PWR ENT RCPT IEC320-2-2J PNL QC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 746W-15/07 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | cUL, TUV, UL |
| Connector Type | Receptacle, Female Sockets |
| Current Rating - Appliance Inlet | 16 A |
| Filter Type | Unfiltered - Commercial |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 38 mm |
| Panel Cutout Dimensions [y] | 29.5 mm |
| Panel Thickness [custom] | 0.059 in |
| Panel Thickness [custom] | 1.5 mm |
| Termination | 0.189 ", 4.8 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.20 | |
| 10 | $ 1.91 | |||
| 25 | $ 1.83 | |||
| 50 | $ 1.79 | |||
| 100 | $ 1.71 | |||
| 300 | $ 1.54 | |||
| 500 | $ 1.42 | |||
| 1000 | $ 1.22 | |||
| 2500 | $ 1.14 | |||
Description
General part information
746W-15 Series
Power Entry Connector Receptacle, Female Sockets IEC 320-2-2/J Panel Mount, Snap-In
