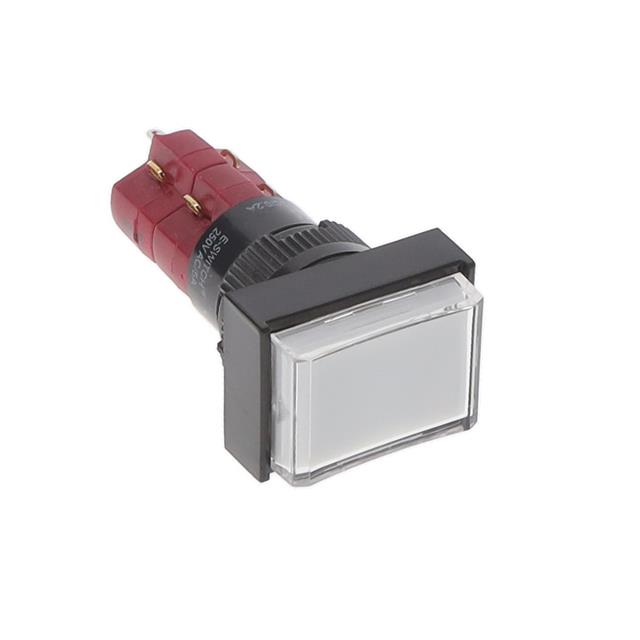

D16OAT120WHT
ActiveE-Switch
SWITCH PUSHBUTTON DPDT 8A 125V
Deep-Dive with AI
Search across all available documentation for this part.
D16OAT120WHT
ActiveE-Switch
SWITCH PUSHBUTTON DPDT 8A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | D16OAT120WHT |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Rectangular, Button |
| Circuit | DPDT |
| Color - Actuator/Cap | White |
| Current Rating (Amps) | 8 A, 6 A |
| Electrical Life | 50000 Cycles |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.47 | |
| 10 | $ 21.32 | |||
| 25 | $ 20.36 | |||
| 50 | $ 19.28 | |||
| 100 | $ 18.56 | |||
| 250 | $ 17.37 | |||
| 500 | $ 14.82 | |||
Description
General part information
D16OAT120 Series
Pushbutton Switch DPDT Standard Panel Mount, Front
