1317C SL001

Active

ALPHA WIRE

MULTI-PAIR 4COND 22AWG SLATE 25'

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 4COND 22AWG SLATE 25'

Technical Specifications

Parameters and characteristics for this part

Specification	1317C SL001

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	5.87 mm
Jacket (Insulation) Diameter [diameter]	0.231 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	30.5 m, 152.4 m, 7.62 m
Length [x]	100 ft, 500 ', 25 ft
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

MULTI-PAIR 4COND 22AWG SLATE 25'

Part	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Number of Conductors	Conductor Material	Length [x]	Length [x]	Usage	Jacket (Insulation) Material	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage
ALPHA WIRE 1317C SL001	Poly-Vinyl Chloride (PVC)	-20 C	80 C	Multi-Pair	4	Copper, Tinned	7.62 m, 30.5 m, 152.4 m	25 ft, 100 ft, 500 '	Communication, Control	Poly-Vinyl Chloride (PVC)	Slate	7	30 AWG	22 AWG	5.87 mm	0.231 "	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

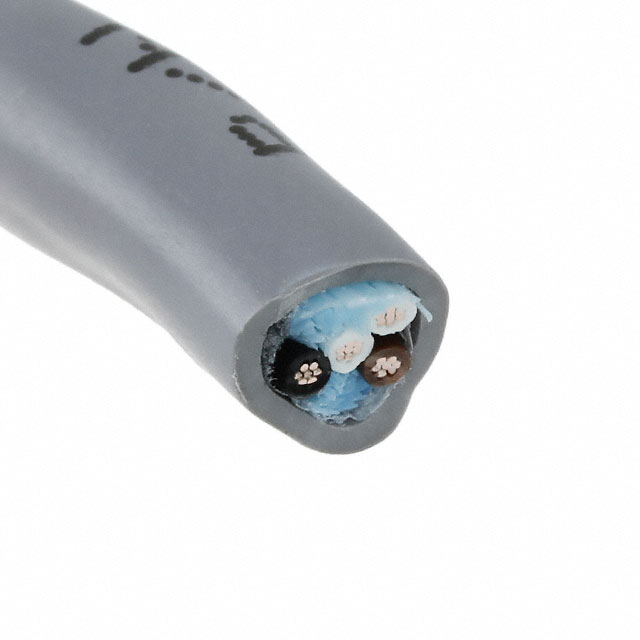

4 (2 Pair Twisted) Conductor Multi-Pair Cable Slate 22 AWG 25.00' (7.62m)
