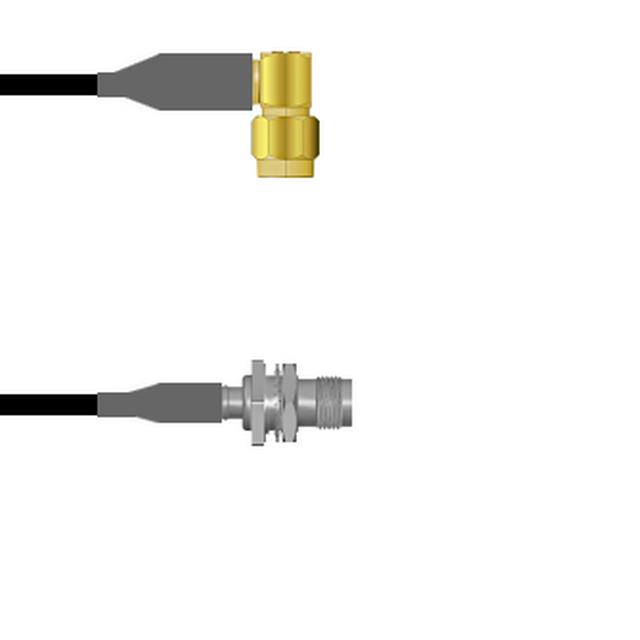

CBL ASSY SMA-TNC PLUG-JACK 9'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3604I0008108I

1st Connector	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-58
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	SMA to TNC

Part	1st Contact Gender	1st Connector Mounting Type	2nd Connector Mounting Feature	1st Connector	2nd Contact Gender	2nd Connector Mounting Type	Frequency - Max [Max]	Connector Impedance	Cable Impedance	Style	Cable Type	Length	Length	Length	Overall Impedance	Features	2nd Connector	Color
Amphenol Custom Cable Q-3604I0008108I	Male	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Right Angle SMA Plug	Female	Panel Mount	1 GHz	50 Ohms	50 Ohms	SMA to TNC	RG-58	2.7 m	9 ft	108 in	50 Ohms	Shielded	TNC Jack	Black
Amphenol Custom Cable Q-3604I00081.5M	Male	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Right Angle SMA Plug	Female	Panel Mount	1 GHz	50 Ohms	50 Ohms	SMA to TNC	RG-58	1.5 m	4.9 ft	59.1 in	50 Ohms	Shielded	TNC Jack	Black
Amphenol Custom Cable Q-3604I00082.5M	Male	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Right Angle SMA Plug	Female	Panel Mount	1 GHz	50 Ohms	50 Ohms	SMA to TNC	RG-58	2.5 m	8.2 '	98.4 in	50 Ohms	Shielded	TNC Jack	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to TNC RG-58 108.0" (2.7m) 9.0'
