H3BBS-2618G

Active

Assmann WSW Components

IDC CBL - HHSR26S/AE26G/HHSR26S

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHSR26S/AE26G/HHSR26S

Technical Specifications

Parameters and characteristics for this part

Part	Pitch - Connector	Pitch - Connector	Number of Rows	Connector Type	Number of Positions	Length	Length	Length	Shielding	Contact Finish	Cable Termination	Pitch - Cable	Pitch - Cable	Features	Color	Length [x]	Length [x]
Assmann WSW Components H3BBS-2606G	0.1 in	2.54 mm	2	Socket to Socket	26	152.4 mm	6 "	0.5 '	Unshielded	Tin	IDC	0.05 "	1.27 mm	Strain Relief
Assmann WSW Components H3BBS-2618M	0.1 in	2.54 mm	2	Socket to Socket	26				Unshielded	Tin	IDC	0.05 "	1.27 mm	Strain Relief	Multiple Ribbon	457.2 mm	1.5 ft
Assmann WSW Components H3BBS-2618G	0.1 in	2.54 mm	2	Socket to Socket	26				Unshielded	Tin	IDC	0.05 "	1.27 mm	Strain Relief		457.2 mm	1.5 ft
Assmann WSW Components H3BBS-2636G	0.1 in	2.54 mm	2	Socket to Socket	26				Unshielded	Tin	IDC	0.05 "	1.27 mm	Strain Relief		914.4 mm	3 ft
Assmann WSW Components H3BBS-2636M	0.1 in	2.54 mm	2	Socket to Socket	26				Unshielded	Tin	IDC	0.05 "	1.27 mm	Strain Relief	Multiple Ribbon	914.4 mm	3 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

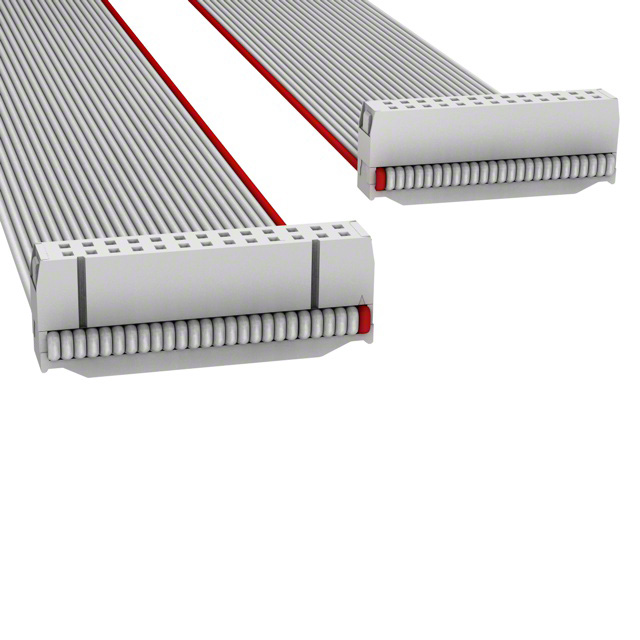

26 Position Cable Assembly Rectangular Socket to Socket 1.50' (457.20mm)

Technical documentation and resources
