IS42S32160B-7BL

Obsolete

ISSI, Integrated Silicon Solution Inc

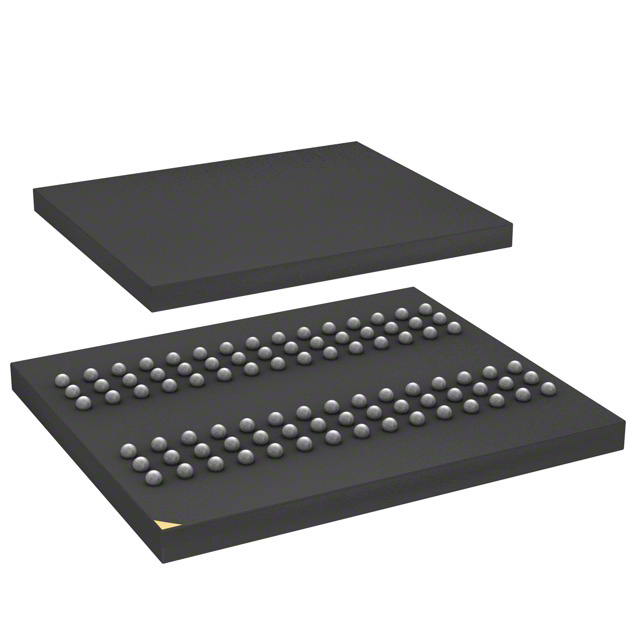

IC DRAM 512MBIT PAR 90LFBGA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IS42S32160B-7BL

Obsolete

ISSI, Integrated Silicon Solution Inc

IC DRAM 512MBIT PAR 90LFBGA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

IS42S32160 Series

SDRAM Memory IC 512Mbit Parallel 143 MHz 5.4 ns 90-LFBGA (13x11)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IS42S32160B-7BL	IS42S32160 Series

Access Time	5.4 ns	5.4 - 6 ns
Clock Frequency	143 MHz	133 - 167 MHz
Memory Format	DRAM	DRAM
Memory Interface	Parallel	Parallel
Memory Organization	16M x 32	16M x 32
Memory Size	64 MB	64 MB
Memory Type	Volatile	Volatile
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	70 °C	70 - 85 °C
Operating Temperature [Min]	0 °C	-40 - 0 °C
Package / Case	90-LFBGA	90-TFBGA, 90-LFBGA, 86-TFSOP
Package / Case	-	0.4 in
Supplier Device Package	90-LFBGA (13x11)	90-TFBGA (8x13), 90-WBGA (8x13), 86-TSOP II, 90-LFBGA (13x11), 90-WBGA (11x13)
Technology	SDRAM	SDRAM
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	3 V	3 V

IS42S32160 Series

IC DRAM 512MBIT PAR 90TFBGA

Part	Memory Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Access Time	Memory Format	Operating Temperature [Max]	Operating Temperature [Min]	Memory Size	Supplier Device Package	Memory Interface	Clock Frequency	Package / Case	Technology	Mounting Type	Memory Organization	Package / Case [custom]
ISSI, Integrated Silicon Solution Inc IS42S32160D-7BL-TR	Volatile	3.6 V	3 V	5.4 ns	DRAM	70 °C	0 °C	64 MB	90-TFBGA (8x13)	Parallel	143 MHz	90-TFBGA	SDRAM	Surface Mount	16M x 32
ISSI, Integrated Silicon Solution Inc IS42S32160D-6BI-TR	Volatile	3.6 V	3 V	5.4 ns	DRAM	85 °C	-40 °C	64 MB	90-TFBGA (8x13)	Parallel	166 MHz	90-TFBGA	SDRAM	Surface Mount	16M x 32
ISSI, Integrated Silicon Solution Inc IS42S32160F-75EBLI	Volatile	3.6 V	3 V	6 ns	DRAM	85 °C	-40 °C	64 MB	90-TFBGA (8x13)	Parallel	133 MHz	90-TFBGA	SDRAM	Surface Mount	16M x 32
ISSI, Integrated Silicon Solution Inc IS42S32160F-6BLI	Volatile	3.6 V	3 V	5.4 ns	DRAM	85 °C	-40 °C	64 MB	90-TFBGA (8x13)	Parallel	167 MHz	90-TFBGA	SDRAM	Surface Mount	16M x 32
ISSI, Integrated Silicon Solution Inc IS42S32160C-75BLI-TR	Volatile	3.6 V	3 V	6 ns	DRAM	85 °C	-40 °C	64 MB	90-WBGA (8x13)	Parallel	133 MHz	90-LFBGA	SDRAM	Surface Mount	16M x 32
ISSI, Integrated Silicon Solution Inc IS42S32160D-6BLI-TR	Volatile	3.6 V	3 V	5.4 ns	DRAM	85 °C	-40 °C	64 MB	90-TFBGA (8x13)	Parallel	166 MHz	90-TFBGA	SDRAM	Surface Mount	16M x 32
ISSI, Integrated Silicon Solution Inc IS42S32160C-6BL-TR	Volatile	3.6 V	3 V	5.4 ns	DRAM	70 °C	0 °C	64 MB	90-WBGA (8x13)	Parallel	166 MHz	90-LFBGA	SDRAM	Surface Mount	16M x 32
ISSI, Integrated Silicon Solution Inc IS42S32160C-6BLI	Volatile	3.6 V	3 V	5.4 ns	DRAM	85 °C	-40 °C	64 MB	90-WBGA (8x13)	Parallel	166 MHz	90-LFBGA	SDRAM	Surface Mount	16M x 32
ISSI, Integrated Silicon Solution Inc IS42S32160F-75ETLI-TR	Volatile	3.6 V	3 V	6 ns	DRAM	85 °C	-40 °C	64 MB	86-TSOP II	Parallel	133 MHz	86-TFSOP	SDRAM	Surface Mount	16M x 32	0.4 in
ISSI, Integrated Silicon Solution Inc IS42S32160B-7BL	Volatile	3.6 V	3 V	5.4 ns	DRAM	70 °C	0 °C	64 MB	90-LFBGA (13x11)	Parallel	143 MHz	90-LFBGA	SDRAM	Surface Mount	16M x 32
