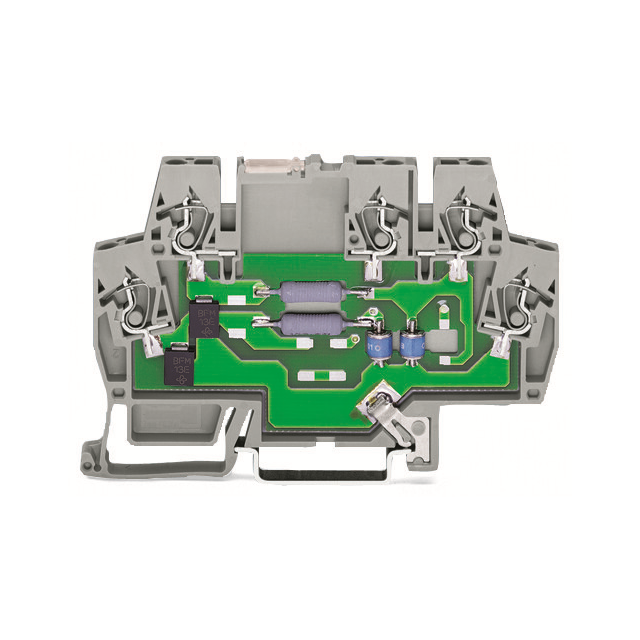

792-800

Active

WAGO Corporation

SPD 23VAC/33VDC MCOV 1 POLE

Search across all available documentation for this part.

Active

WAGO Corporation

SPD 23VAC/33VDC MCOV 1 POLE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	792-800	792 Series

Approval Agency	EAC	EAC, ATEX
Current - Discharge (Max) (8/20µS) [Max]	10 kA	5 - 10 kA
Current - Discharge (Nom) (8/20µS)	5 kA	5 - 300 kA
Form	Module Only	Module Only
Mounting Type	DIN Rail	DIN Rail
Number of Poles	1	1
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-40 °C	-40 °C
Voltage - Continuous Operating (Max) (MCOV) [Max]	23 VAC, 33 VDC	4.2 - 55 VAC
Voltage - Protection Level (VP) (2416)	110 V	27 - 110 V

SPD 23VAC/33VDC MCOV 1 POLE

Part	Approval Agency	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Discharge (Max) (8/20µS) [Max]	Current - Discharge (Nom) (8/20µS)	Voltage - Continuous Operating (Max) (MCOV) [Max]	Voltage - Protection Level (VP) (2416)	Form	Number of Poles
WAGO Corporation 792-800	EAC	DIN Rail	-40 °C	80 C	10 kA	5 kA	23 VAC, 33 VDC	110 V	Module Only	1
WAGO Corporation 792-801	EAC	DIN Rail	-40 °C	80 C	10 kA	5 kA	23 VAC, 33 VDC	50 V	Module Only	1
WAGO Corporation 792-804	EAC	DIN Rail	-40 °C	80 C	10 kA	5 kA	38.5 VAC, 55 VDC	100 V	Module Only	1
WAGO Corporation 792-805	EAC	DIN Rail	-40 °C	80 C	10 kA	5 kA	4.2 VAC, 6 VDC	27 V	Module Only	1
WAGO Corporation 792-802	EAC	DIN Rail	-40 °C	80 C	5 kA	300 A	23 VAC, 33 VDC	50 V	Module Only	1
WAGO Corporation 792-803	ATEX	DIN Rail	-40 °C	80 C	10 kA	5 kA	23 VAC, 33 VDC	50 V	Module Only	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SPD 23VAC/33VDC MCOV 1 POLE
