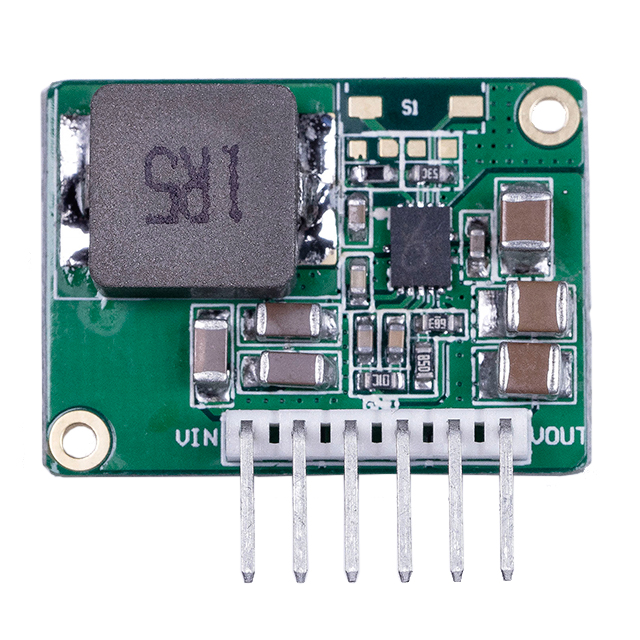

MEZD41503A-A
ActiveMONOLITHIC POWER SYSTEMS (MPS)
DC DC CONVERTER 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MEZD41503A-A
ActiveMONOLITHIC POWER SYSTEMS (MPS)
DC DC CONVERTER 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MEZD41503A-A |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 3 A |
| Efficiency | 96.7 % |
| Features | OTP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | 6-SIP Module |
| Size / Dimension [x] | 1.06 " |
| Size / Dimension [x] | 27 mm |
| Size / Dimension [y] | 0.79 " |
| Size / Dimension [y] | 20 mm |
| Size / Dimension [z] | 5.4 mm |
| Size / Dimension [z] | 0.21 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 4.2 V |
| Voltage - Input (Min) [Min] | 2.7 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 30 | $ 14.14 | |
Description
General part information
MEZD41503 Series
Non-Isolated PoL Module DC DC Converter 1 Output 5V 3A 2.7V - 4.2V Input
