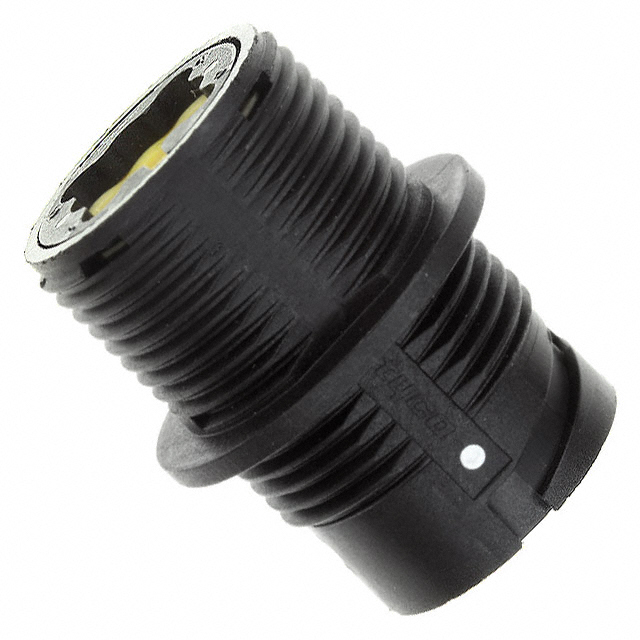

1445822-1

Active

TE Connectivity Raychem Cable Protection

CONN RCPT HSNG MALE 7POS PNL MNT

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN RCPT HSNG MALE 7POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	1445822-1

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front or Rear Side Nut
Note	Contacts Not Included, Jam Nut Not Included
Number of Positions	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	A
Shell Size - Insert	11-7
Shielding	Unshielded
Type	For Male Pins

Part	Number of Positions	Contact Type	Mounting Feature	Note	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Connector Type	Shell Size - Insert	Material Flammability Rating	Fastening Type	Housing Color	Type	Insert Material	Ingress Protection	Orientation	Shielding
TE Connectivity Raychem Cable Protection 1445822-3	7	Crimp	Bulkhead - Front or Rear Side Nut	Contacts Not Included Jam Nut Not Included	105 ░C	-55 °C	Circular	Receptacle Housing	11-7	UL94 V-0	Bayonet Lock	Black	For Male Pins	Thermoplastic	IP67 - Dust Tight Waterproof	A	Unshielded
TE Connectivity Raychem Cable Protection 1445822-1	7	Crimp	Bulkhead - Front or Rear Side Nut	Contacts Not Included Jam Nut Not Included	105 ░C	-55 °C	Circular	Receptacle Housing	11-7	UL94 V-0	Bayonet Lock	Black	For Male Pins	Thermoplastic	IP67 - Dust Tight Waterproof	A	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	400	$ 13.04

General part information

7 Position Circular Connector Receptacle Housing Panel Mount
