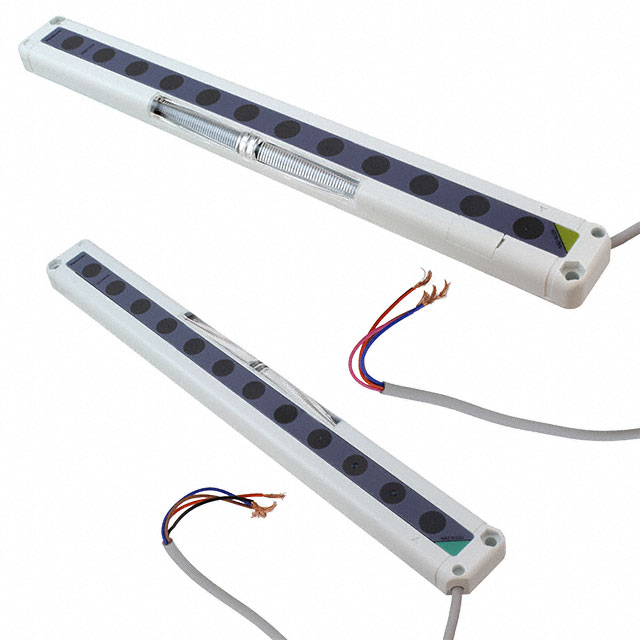

NA2-N12

Active

Panasonic Industrial Automation Sales

SENSOR THRU-BEAM 220MM NPN OPEN

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

SENSOR THRU-BEAM 220MM NPN OPEN

Technical Specifications

Parameters and characteristics for this part

Specification	NA2-N12

Cable Length	118.1 in
Cable Length	3000 mm
Connection Method	Cable
Ingress Protection	IP40
Light Source	Infrared (950nm)
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Output Configuration	NPN - Open Collector
Response Time	10 ms
Sensing Distance	8.661 "
Sensing Distance	220 mm
Sensing Method	Through-Beam
Voltage - Supply [Max]	24 V
Voltage - Supply [Min]	12 V

Part	Sensing Method	Connection Method	Response Time	Ingress Protection	Output Configuration	Light Source	Cable Length	Cable Length	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Sensing Distance	Sensing Distance
Panasonic Industrial Automation Sales NA2-N16	Through-Beam	Cable	10 ms	IP40	NPN - Open Collector	Infrared (950nm)	118.1 in	3000 mm	12 V	24 V	55 °C	-10 °C	11.811 in	300 mm
Panasonic Industrial Automation Sales NA2-N12	Through-Beam	Cable	10 ms	IP40	NPN - Open Collector	Infrared (950nm)	118.1 in	3000 mm	12 V	24 V	55 °C	-10 °C	8.661 "	220 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Through-Beam Optical Sensor 8.661" (220mm) NPN - Open Collector
