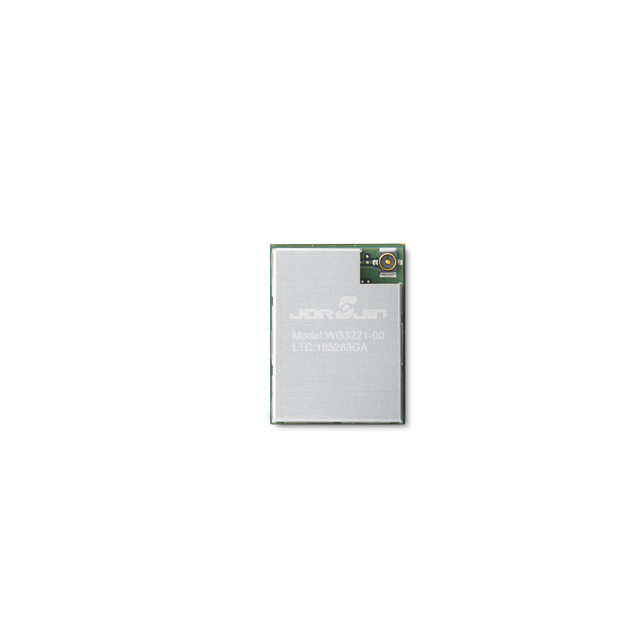

WG3221-00

Active

Jorjin Technologies Inc.

RF TXRX MOD BT WIFIIPEX MHF4 SMD

Search across all available documentation for this part.

Active

Jorjin Technologies Inc.

RF TXRX MOD BT WIFIIPEX MHF4 SMD

Technical Specifications

Parameters and characteristics for this part

Specification	WG3221-00

Antenna Type	Antenna Not Included, I-PEX MHF4
Frequency	5 GHz, 2.4 GHz
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Protocol	Bluetooth, 802.11a/b/g/-c
RF Family/Standard	WiFi, Bluetooth
Serial Interfaces	UART, PCM, SDIO
Utilized IC / Part	QCA9377-3
Voltage - Supply	3.3 V

RF TXRX MOD BT WIFIIPEX MHF4 SMD

Part	Serial Interfaces	Mounting Type	Voltage - Supply	Antenna Type	Operating Temperature [Max]	Operating Temperature [Min]	Utilized IC / Part	Protocol	Package / Case	RF Family/Standard	Frequency
Jorjin Technologies Inc. WG3221-00	PCM, SDIO, UART	Surface Mount	3.3 V	Antenna Not Included, I-PEX MHF4	85 °C	-40 °C	QCA9377-3	802.11a/b/g/-c, Bluetooth	Module	Bluetooth, WiFi	2.4 GHz, 5 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bluetooth, WiFi 802.11a/b/g/-c, Bluetooth Transceiver Module 2.4GHz, 5GHz Antenna Not Included, I-PEX MHF4 Surface Mount
