917782-1

Active

TE Connectivity AMP Connectors

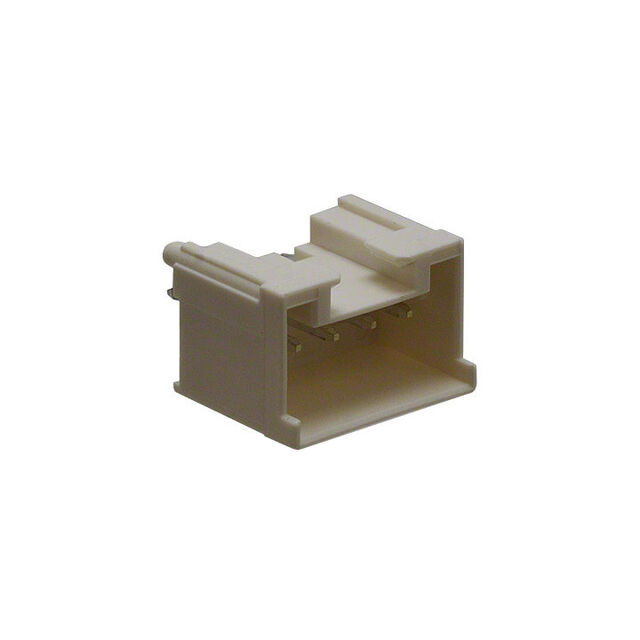

CONN HEADER VERT 4POS 2.5MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 4POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	917782-1

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.185 in
Contact Length - Mating	4.7 mm
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Natural
Insulation Height	9.8 mm
Insulation Height	0.386 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	13.7 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Overall Contact Length	0.41 in
Overall Contact Length	10.41 mm
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	50 V

CONN HEADER VERT 4POS 2.5MM

Part	Contact Finish - Post	Insulation Height	Insulation Height	Current Rating (Amps)	Style	Contact Shape	Contact Type	Mounting Type	Connector Type	Shrouding	Features	Fastening Type	Contact Length - Post	Contact Length - Post [x]	Material Flammability Rating	Applications	Mated Stacking Heights	Voltage Rating	Insulation Color	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Number of Positions	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions Loaded	Contact Material	Contact Length - Mating	Contact Length - Mating	Number of Rows
TE Connectivity AMP Connectors 917782-1	Tin	9.8 mm	0.386 in	3 A	Board to Cable/Wire	Square	Male Pin	Through Hole	Header	Shrouded - 4 Wall	Board Guide	Latch Holder	3.2 mm	0.126 in	UL94 V-0	General Purpose	13.7 mm	50 V	Natural	0.41 in	10.41 mm	2.5 mm	0.098 in	4	Polyamide (PA66), Nylon 6/6, Glass Filled	-30 ░C	105 ░C	Kinked Pin, Solder	All	Copper Alloy	0.185 in	4.7 mm	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 4 position 0.098" (2.50mm)
