L17H2330131

Active

Amphenol ICC (Commercial Products)

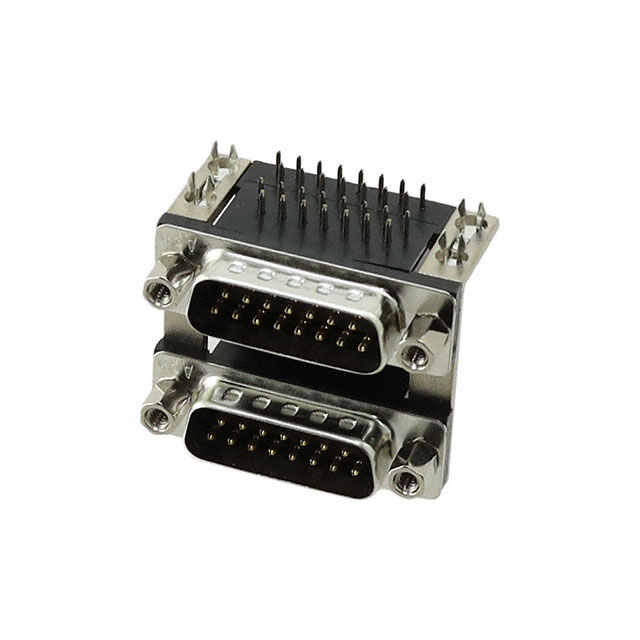

CONN D-SUB PLUG 15POS R/A SLDR

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 15POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	L17H2330131

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Board Lock, Shielded, Grounding Indents
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	2
Shell Size, Connector Layout [custom]	2
Termination	Solder
Voltage Rating	250 VDC

Part	Backset Spacing	Backset Spacing	Mounting Type	Current Rating (Amps)	Number of Positions	Contact Form	Number of Rows	Connector Style	Features	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Material Flammability Rating	Contact Finish	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Flange Feature	Color	Contact Material	Termination	Connector Type	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Finish Thickness
Amphenol ICC (Commercial Products) L17H2342120	8.08 mm	0.318 "	Through Hole Right Angle	3 A	15	Stamped	2	D-Sub - Stacked	Board Lock Grounding Indents Shielded	0.76 Ám	30 Áin	Signal	UL94 V-0	Gold	2	2	Housing/Shell (4-40)	Black	Brass	Solder	Plug Male Pins Receptacle Female Sockets	Thermoplastic Glass Filled	105 ░C	-55 °C	250 VDC
Amphenol ICC (Commercial Products) L17H2330131	8.08 mm	0.318 "	Through Hole Right Angle	3 A	15	Stamped	2	D-Sub - Stacked	Board Lock Grounding Indents Shielded			Signal	UL94 V-0	Gold	2	2	Female Screwlock (4-40) Mating Side	Black	Brass	Solder	Male Pins Plug	Thermoplastic Glass Filled	105 ░C	-55 °C	250 VDC	Flash
Amphenol ICC (Commercial Products) L17H2340121	8.08 mm	0.318 "	Through Hole Right Angle	3 A	15	Stamped	2	D-Sub - Stacked	Board Lock Grounding Indents Shielded			Signal	UL94 V-0	Gold	2	2	Female Screwlock (4-40) Mating Side	Black	Brass	Solder	Plug Male Pins Receptacle Female Sockets	Thermoplastic Glass Filled	105 ░C	-55 °C	250 VDC	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15, 15 Position D-Sub - Stacked Plug, Male Pins Connector
