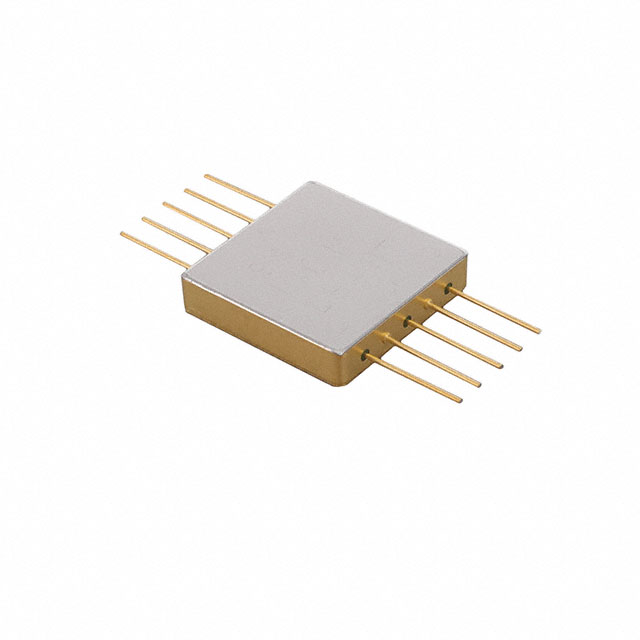

DS-117-PIN
ActiveMACOM Technology Solutions
POWER_DIVIDER,3-WAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DS-117-PIN
ActiveMACOM Technology Solutions
POWER_DIVIDER,3-WAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DS-117-PIN |
|---|---|
| Frequency [Max] | 300 MHz |
| Frequency [Min] | 1 MHz |
| Insertion Loss | 1 dB |
| Package / Case | FP-3 |
| Size / Dimension [x] | 0.626 in |
| Size / Dimension [x] | 15.9 mm |
| Size / Dimension [y] | 15.9 mm |
| Size / Dimension [y] | 0.626 in |
| Size / Dimension [z] | 3.8 mm |
| Size / Dimension [z] | 0.15 " |
| Specifications [Max] | 1.5 VSWR, 4 ° |
| Specifications [Min] | 30 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 344.90 | |
Description
General part information
DS-117 Series
RF Power Divider 1 MHz ~ 300 MHz Isolation (Min) 30dB, 1.5 VSWR (Max), 4° Imbalance (Max) FP-3
