SN75LVCP600DRFR

Active

Texas Instruments

1.5/3.0/6.0-GBPS SINGLE CHANNEL SATA REDRIVER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSN75LVCP600 6-Gbps SATA PCB and Cable Equalizer datasheet (Rev. A)

SN75LVCP600DRFR

Active

Texas Instruments

1.5/3.0/6.0-GBPS SINGLE CHANNEL SATA REDRIVER

Deep-Dive with AI

DocumentsSN75LVCP600 6-Gbps SATA PCB and Cable Equalizer datasheet (Rev. A)

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SN75LVCP600DRFR	75LVCP600 Series

Applications	SATA	SATA, SAS
Current - Supply	29 mA	29 - 32 mA
Data Rate (Max) [Max]	6 Gbps	6 Gbps
Delay Time	275 ps	275 - 280 ps
Input	VML	VML, CML
Mounting Type	Surface Mount	Surface Mount
Number of Channels [custom]	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	0 °C	-40 - 0 °C
Output	VML	VML, CML

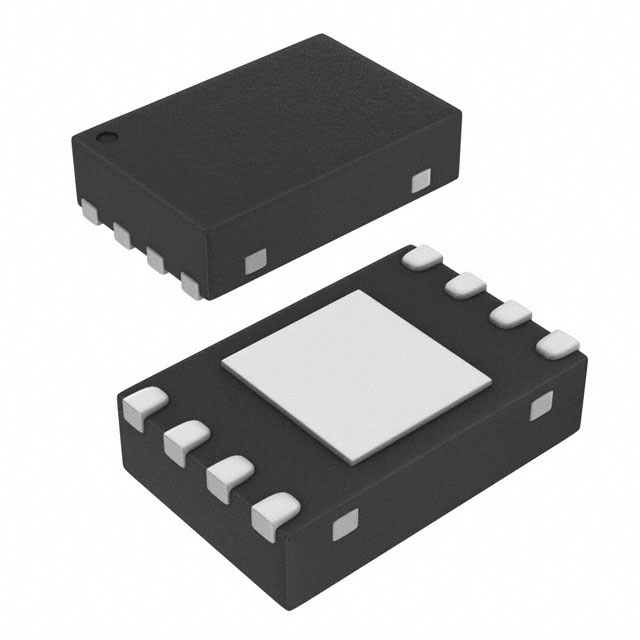

Package / Case	8-WFDFN Exposed Pad	8-WFDFN Exposed Pad, 10-WFDFN Exposed Pad
Signal Conditioning	Input Equalization, Output De-Emphasis	Input Equalization, Output De-Emphasis
Supplier Device Package	8-WSON (2x2)	8-WSON (2x2), 10-SON (2.5x2.5)
Type	ReDriver, Buffer	ReDriver, Buffer
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	3 V	3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

DigiKey	Digi-Reel®, Cut Tape (CT), Tape & Reel (TR)	1	$ 2.35
		3000	$ 1.21
		6000	$ 1.18
Digikey	Cut Tape (CT)	1	$ 2.62
		10	$ 2.35
		25	$ 2.22
		100	$ 1.89
		250	$ 1.78
		500	$ 1.56
		1000	$ 1.29
	Digi-Reel®	1	$ 2.62
		10	$ 2.35
		25	$ 2.22
		100	$ 1.89
		250	$ 1.78
		500	$ 1.56
		1000	$ 1.29
	Tape & Reel (TR)	3000	$ 1.20
		6000	$ 1.16
Mouser Electronics	N/A	1	$ 2.36
		10	$ 2.24
		100	$ 1.91
		250	$ 1.79
		500	$ 1.10
		3000	$ 1.10
		6000	$ 1.07
Rochester Electronics	N/A	1	$ 1.22
		25	$ 1.20
		100	$ 1.15
		500	$ 1.10
		1000	$ 1.04
Texas Instruments	LARGE T&R	1	$ 1.78
		100	$ 1.56
		250	$ 1.09
		1000	$ 0.88

75LVCP600 Series

1.5/3.0/6.0-Gbps single channel SATA redriver

Part	Input	Applications	Package / Case	Supplier Device Package	Current - Supply	Number of Channels [custom]	Output	Delay Time	Signal Conditioning	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Data Rate (Max) [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Type
Texas Instruments SN75LVCP600DRFR The SN75LVCP600 is a versatile single channel, SATA Express signal conditioner supporting data rates up to 6 Gbps. The device supports SATA Gen 1, 2, and 3 specifications as well as PCIe 1.0, 2.0, and 3.0. The SN75LVCP600 operates from a single 3.3-V supply and has 100-Ω line termination with self-biasing feature, making the device suitable for AC coupling. The inputs incorporate an out-of-band (OOB) detector, which automatically squelches the output when the input differential voltage falls below threshold while maintaining a stable common-mode voltage. The device is also designed to handle spread spectrum clocking (SSC) transmission per SATA standard. The SN75LVCP600 handles interconnect losses at its input with selectable equalization settings that can be programmed to match the loss in the channel. For data rates of 3 Gbps and lower the SN75LVCP600 equalizes signals for a span of up to 50 inches of FR4 board material. For data rates of 8 Gbps the device compensates up to 40 in of FR4 material. The equalization level is controlled by the setting of the signal control pin EQ. Two de-emphasis levels can be selected on the transmit side to provide 0 dB or 1.2 dB of additional high-frequency loss compensation at the output. The device is hot-plug capable(1)preventing device damage under devicehot-insertion such as async signal plug and removal, unpowered plug and removal, powered plug and removal, or surprise plug and removal. (1) Requires use of AC coupling capacitors at differential inputs and outputs. The SN75LVCP600 is a versatile single channel, SATA Express signal conditioner supporting data rates up to 6 Gbps. The device supports SATA Gen 1, 2, and 3 specifications as well as PCIe 1.0, 2.0, and 3.0. The SN75LVCP600 operates from a single 3.3-V supply and has 100-Ω line termination with self-biasing feature, making the device suitable for AC coupling. The inputs incorporate an out-of-band (OOB) detector, which automatically squelches the output when the input differential voltage falls below threshold while maintaining a stable common-mode voltage. The device is also designed to handle spread spectrum clocking (SSC) transmission per SATA standard. The SN75LVCP600 handles interconnect losses at its input with selectable equalization settings that can be programmed to match the loss in the channel. For data rates of 3 Gbps and lower the SN75LVCP600 equalizes signals for a span of up to 50 inches of FR4 board material. For data rates of 8 Gbps the device compensates up to 40 in of FR4 material. The equalization level is controlled by the setting of the signal control pin EQ. Two de-emphasis levels can be selected on the transmit side to provide 0 dB or 1.2 dB of additional high-frequency loss compensation at the output. The device is hot-plug capable(1)preventing device damage under devicehot-insertion such as async signal plug and removal, unpowered plug and removal, powered plug and removal, or surprise plug and removal. (1) Requires use of AC coupling capacitors at differential inputs and outputs.	VML	SATA	8-WFDFN Exposed Pad	8-WSON (2x2)	29 mA	1	VML	275 ps	Input Equalization, Output De-Emphasis	0 °C	85 °C	Surface Mount	6 Gbps	3.6 V	3 V	Buffer, ReDriver
Texas Instruments SN75LVCP600SDSKR Buffer, ReDriver 1 Channel 6Gbps 10-SON (2.5x2.5)	CML	SAS, SATA	10-WFDFN Exposed Pad	10-SON (2.5x2.5)	32 mA	1	CML	280 ps	Input Equalization, Output De-Emphasis	-40 °C	85 °C	Surface Mount	6 Gbps	3.6 V	3 V	Buffer, ReDriver
Texas Instruments SN75LVCP600SDSKT Buffer, ReDriver 1 Channel 6Gbps 10-SON (2.5x2.5)	CML	SAS, SATA	10-WFDFN Exposed Pad	10-SON (2.5x2.5)	32 mA	1	CML	280 ps	Input Equalization, Output De-Emphasis	-40 °C	85 °C	Surface Mount	6 Gbps	3.6 V	3 V	Buffer, ReDriver

Description

General part information

75LVCP600 Series

The SN75LVCP600 is a versatile single channel, SATA Express signal conditioner supporting data rates up to 6 Gbps. The device supports SATA Gen 1, 2, and 3 specifications as well as PCIe 1.0, 2.0, and 3.0. The SN75LVCP600 operates from a single 3.3-V supply and has 100-Ω line termination with self-biasing feature, making the device suitable for AC coupling. The inputs incorporate an out-of-band (OOB) detector, which automatically squelches the output when the input differential voltage falls below threshold while maintaining a stable common-mode voltage. The device is also designed to handle spread spectrum clocking (SSC) transmission per SATA standard.

The SN75LVCP600 handles interconnect losses at its input with selectable equalization settings that can be programmed to match the loss in the channel. For data rates of 3 Gbps and lower the SN75LVCP600 equalizes signals for a span of up to 50 inches of FR4 board material. For data rates of 8 Gbps the device compensates up to 40 in of FR4 material. The equalization level is controlled by the setting of the signal control pin EQ.

Two de-emphasis levels can be selected on the transmit side to provide 0 dB or 1.2 dB of additional high-frequency loss compensation at the output.

Documents

Technical documentation and resources

SN75LVCP600 6-Gbps SATA PCB and Cable Equalizer datasheet (Rev. A)

Data sheet
