4-2834461-0

Active

TE Connectivity Raychem Cable Protection

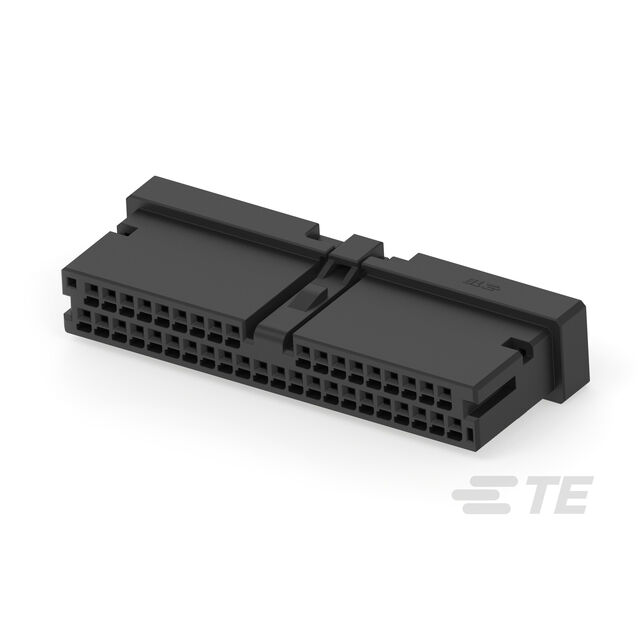

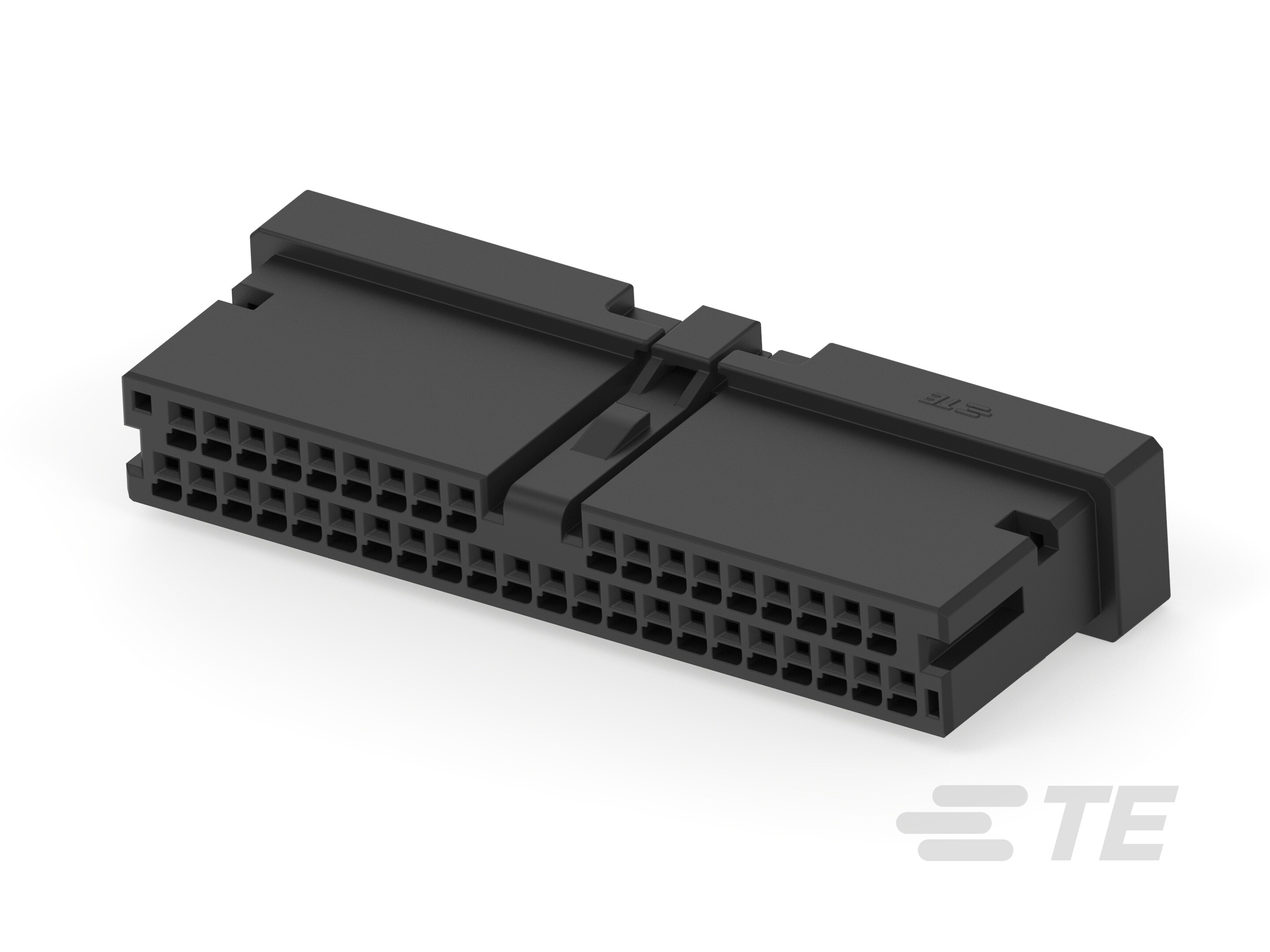

BOARD CONNECTOR, 40 CONTACT(S), 2 ROW(S), CRIMP TERMINAL, BLACK INSULATOR, RECEPTACLE

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

BOARD CONNECTOR, 40 CONTACT(S), 2 ROW(S), CRIMP TERMINAL, BLACK INSULATOR, RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	4-2834461-0

null

Part	Connector Type	Contact Termination	Contact Type	Number of Rows	Fastening Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing	Number of Positions	Insulation Material	Color
TE Connectivity Raychem Cable Protection 4-2834461-4
TE Connectivity Raychem Cable Protection 3-2834497-6	Receptacle	Crimp	Female Socket	2	Latch Holder	Free Hanging (In-Line)	125 °C	-40 °C	0.071 in	1.8 mm	0.108 in	2.75 mm	36	Polybutylene Terephthalate (PBTP)	Black
TE Connectivity Raychem Cable Protection 3-2834497-2	Receptacle	Crimp	Female Socket	2	Latch Holder	Free Hanging (In-Line)	125 °C	-40 °C	0.071 in	1.8 mm	0.108 in	2.75 mm		Polybutylene Terephthalate (PBTP)	Black
TE Connectivity Raychem Cable Protection 2-2834461-4
TE Connectivity Raychem Cable Protection 2-2834461-8
TE Connectivity Raychem Cable Protection 3-2834461-2
TE Connectivity Raychem Cable Protection 4-2834461-0
TE Connectivity Raychem Cable Protection 4-2834497-0	Receptacle	Crimp	Female Socket	2	Latch Holder	Free Hanging (In-Line)	125 °C	-40 °C	0.071 in	1.8 mm	0.108 in	2.75 mm	40	Polybutylene Terephthalate (PBTP)	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rectangular Connectors - Housings

Technical documentation and resources
