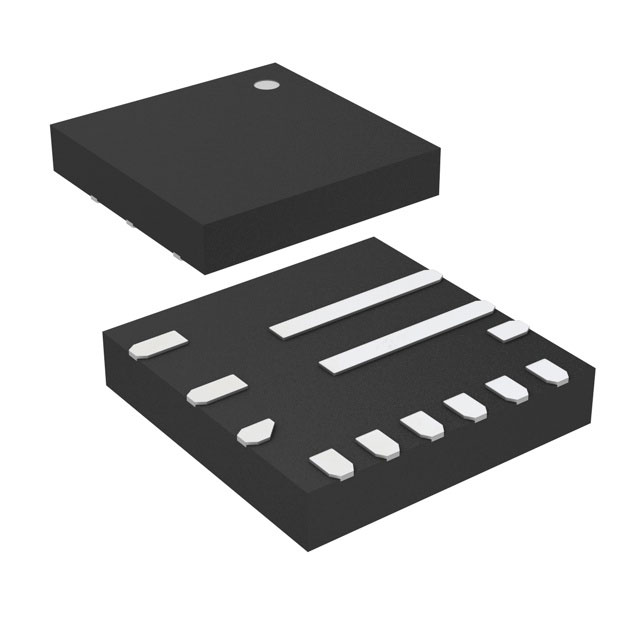

RT6250BHGQUF
ActiveRichtek USA Inc.
IC REG BUCK ADJ 10A 12UQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT6250BHGQUF
ActiveRichtek USA Inc.
IC REG BUCK ADJ 10A 12UQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT6250BHGQUF |
|---|---|
| Current - Output | 10 A |
| Frequency - Switching | 500 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 12-UFQFN |
| Supplier Device Package | 12-UQFN-HL |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output (Max) [Max] | 5.1 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.19 | |
| 10 | $ 2.86 | |||
| 25 | $ 2.70 | |||
| 100 | $ 2.34 | |||
| 250 | $ 2.22 | |||
| 500 | $ 2.00 | |||
| Digi-Reel® | 1 | $ 3.19 | ||
| 10 | $ 2.86 | |||
| 25 | $ 2.70 | |||
| 100 | $ 2.34 | |||
| 250 | $ 2.22 | |||
| 500 | $ 2.00 | |||
| Tape & Reel (TR) | 1500 | $ 1.63 | ||
| 3000 | $ 1.55 | |||
| 4500 | $ 1.51 | |||
Description
General part information
RT6250 Series
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 10A 12-UFQFN
