1656-2-57-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.

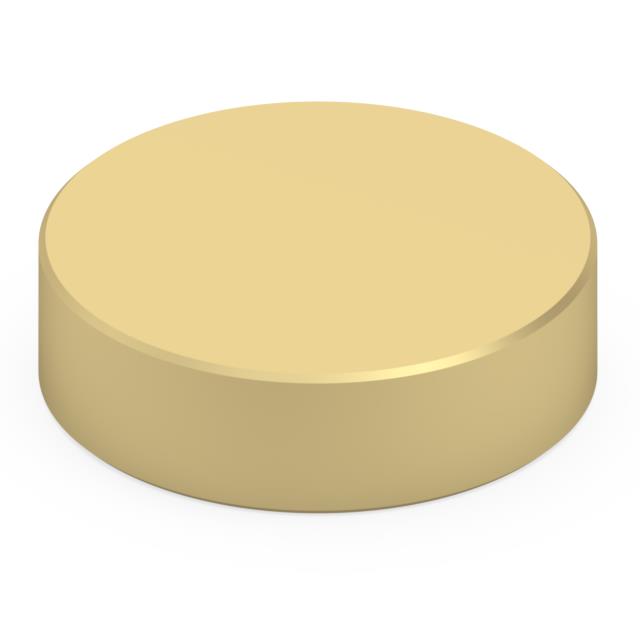

.156" DIAMETER TARGET DISC
Deep-Dive with AI
Search across all available documentation for this part.
1656-2-57-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
.156" DIAMETER TARGET DISC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1656-2-57-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Contact Type | Contact Pad |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension [diameter] | 3.96 mm |
| Pad Layout Dimension [diameter] | 0.156 in |
| Pad Layout Dimension [z] | 1.14 mm |
| Pad Layout Dimension [z] | 0.045 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.93 | |
| 10 | $ 0.71 | |||
| 25 | $ 0.63 | |||
| 50 | $ 0.59 | |||
| 100 | $ 0.54 | |||
| 250 | $ 0.49 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.42 | |||
| 2500 | $ 0.38 | |||
| Tape & Reel (TR) | 5125 | $ 0.31 | ||
Description
General part information
1656-2 Series
Contact Spring Surface Mount
