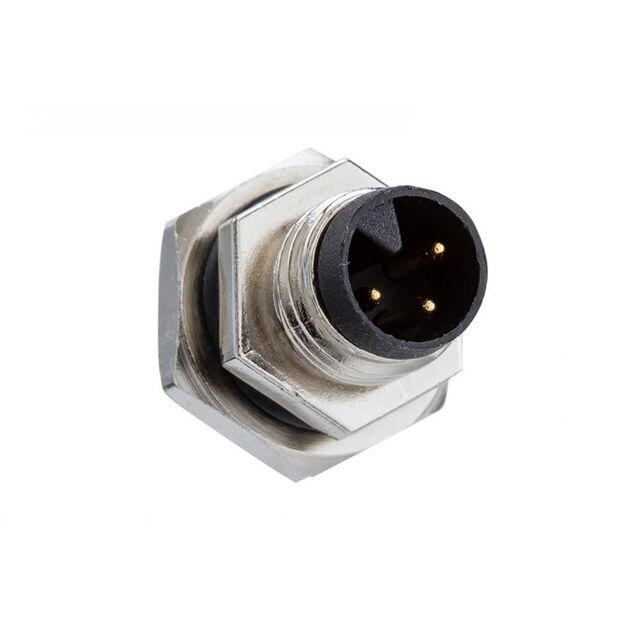

8-03PMMP-SF7002

Active

Amphenol LTW

M8 CONN

Search across all available documentation for this part.

Active

Amphenol LTW

M8 CONN

Technical Specifications

Parameters and characteristics for this part

Specification	8-03PMMP-SF7002

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M8-3
Shielding	Shielded
Termination	Solder
Voltage Rating	60 VDC

Part	Insert Material	Orientation	Material Flammability Rating	Ingress Protection	Voltage Rating	Contact Material	Current Rating (Amps)	Color	Mounting Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Shielding	Connector Type	Shell Size - Insert	Primary Material	Shell Finish	Contact Finish - Mating	Shell Material
Amphenol LTW 8-03PMMP-SF7002	Polyamide (PA) Nylon Glass Filled	Keyed	UL94 V-0	IP67 - Dust Tight Waterproof	60 VDC	Copper Alloy	3 A	Silver	Panel Mount Through Hole	Solder	-40 °C	105 ░C	Bulkhead - Front Side Nut	Shielded	Male Pins Receptacle	M8-3	Metal	Nickel	Gold	Zinc Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Solder
