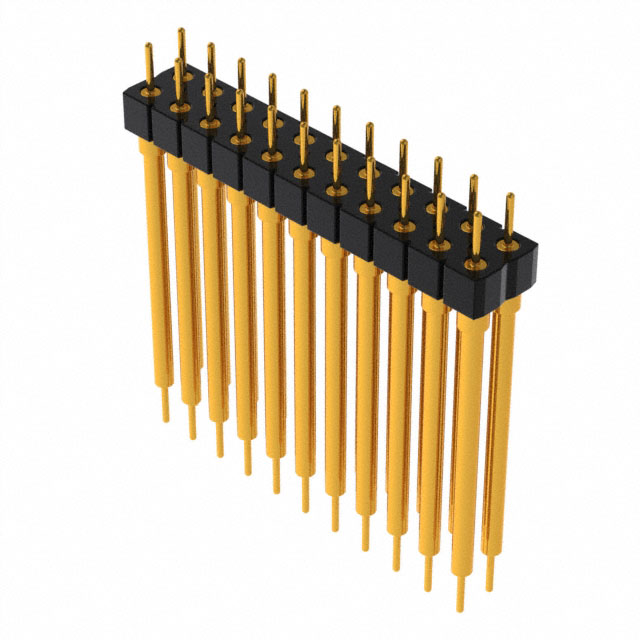

BBD-111-G-D

Active

Samtec Inc.

CONN HEADER VERT 22POS 2.54MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER VERT 22POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	BBD-111-G-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Nickel
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating	0.125 in
Contact Length - Mating	3.18 mm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.835 "
Insulation Height	21.21 mm
Insulation Material	Polyester, Glass Filled
Mounting Type	Through Hole
Number of Positions	22 positions
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

Part	Contact Shape	Contact Finish - Post	Contact Finish - Mating	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Number of Rows	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Mounting Type	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Insulation Material	Number of Positions	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Termination	Contact Type	Insulation Height [z]	Insulation Height [z]
Samtec Inc. BBD-111-G-G	Circular	Nickel	Gold	0.585 in	14.86 mm	1.27 µm	50 µin	2.54 mm	0.1 in	Header	2	0.1 in	2.54 mm	-55 °C	125 °C	0.125 in	3.18 mm	Through Hole	Unshrouded	3.18 mm	0.125 in	All	0.835 in	21.21 mm	Polyester Glass Filled	22 positions	Push-Pull	0.51 µm	20 µin	Black	Solder	Male Pin
Samtec Inc. BBD-111-G-A	Circular	Nickel	Gold			1.27 µm	50 µin	2.54 mm	0.1 in	Header	2	0.1 in	2.54 mm	-55 °C	125 °C	0.125 in	3.18 mm	Through Hole	Unshrouded	3.18 mm	0.125 in	All	0.46 "	11.68 mm	Polyester Glass Filled	22 positions	Push-Pull	0.51 µm	20 µin	Black	Solder	Male Pin	5.35 mm	0.211 in
Samtec Inc. BBD-111-G-D	Circular	Nickel	Gold	0.835 "	21.21 mm	1.27 µm	50 µin	2.54 mm	0.1 in	Header	2	0.1 in	2.54 mm	-55 °C	125 °C	0.125 in	3.18 mm	Through Hole	Unshrouded	3.18 mm	0.125 in	All			Polyester Glass Filled	22 positions	Push-Pull	0.51 µm	20 µin	Black	Solder	Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	20	$ 16.49

General part information

Connector Header Through Hole 22 position 0.100" (2.54mm)
