CF14US-02-04-02-UV

Active

Igus

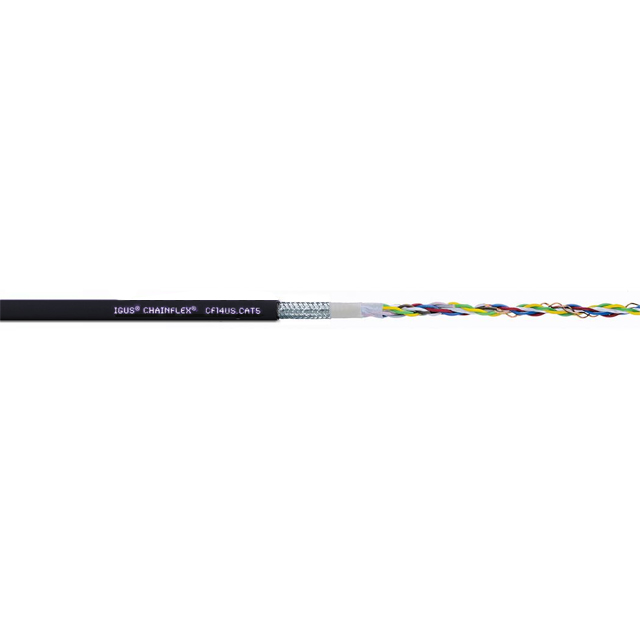

CABLE CAT5E 8COND 26AWG BLK FEET

Search across all available documentation for this part.

Active

Igus

CABLE CAT5E 8COND 26AWG BLK FEET

Technical Specifications

Parameters and characteristics for this part

Specification	CF14US-02-04-02-UV

Cable Type	Multi-Pair, Cat5e
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Bare
Features	Oil Resistant, UV Resistant, Flame Retardant
Jacket (Insulation) Diameter [diameter]	7.62 mm
Jacket (Insulation) Diameter [diameter]	0.3 in
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length	Enter Number of Feet in Order Quantity
Number of Conductors	8
Ratings	UL Style 20233
Shield Coverage	90 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Network
Voltage	300 V
Wire Gauge	26 AWG

CABLE CAT5E 8COND 26AWG BLK FEET

Part	Voltage	Jacket (Insulation) Material	Shield Material	Conductor Material	Shield Type	Shield Coverage	Jacket Color	Cable Type	Number of Conductors	Length	Features	Usage	Conductor Insulation	Ratings	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Igus CF14US-02-04-02-UV	300 V	Polyurethane (PU)	Copper, Tinned	Copper, Bare	Braid	90 %	Black	Multi-Pair, Cat5e	8	Enter Number of Feet in Order Quantity	Flame Retardant, Oil Resistant, UV Resistant	Network	Foam Polyethylene (FPE)	UL Style 20233	26 AWG	7.62 mm	0.3 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (4 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Black 26 AWG Braid Enter Number of Feet in Order Quantity
