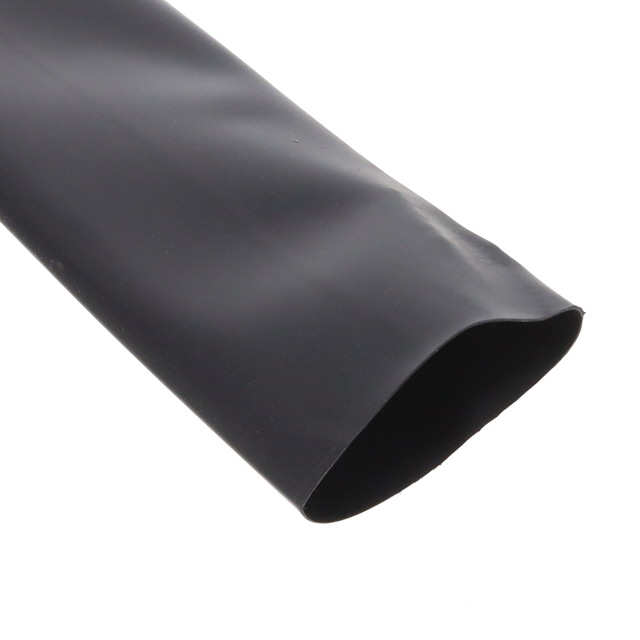

B2 1-1/2 BLACK SPL

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 1 1/2" BLACK FOOT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Sumitube® Solution Guide

B2 1-1/2 BLACK SPL

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 1 1/2" BLACK FOOT

Deep-Dive with AI

DocumentsDatasheet Sumitube® Solution Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	B2 1-1/2 BLACK SPL	B2 1-1/2 Series

Color	Black	Yellow, Black, White
Features	UV Resistant, Flame Retardant	Flame Retardant, UV Resistant
Inner Diameter - Recovered [diameter]	19.1 mm	19.1 mm
Inner Diameter - Recovered [diameter]	0.752 "	0.752 "
Inner Diameter - Supplied [diameter]	39.3 mm	39.3 mm
Inner Diameter - Supplied [diameter]	1.547 in	1.547 in
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Length	-	1.22 m
Length	-	4 ft
Material	Polyolefin (PO), Irradiated	Polyolefin (PO), Irradiated
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	1.02 mm	1.02 mm
Recovered Wall Thickness	0.04 in	0.04 in
Shrink Temperature	90 °C	90 °C
Shrinkage Ratio	2 to 1	2 to 1
Spool Size	61 m	61 m
Spool Size	200 '	200 '
Type	Tubing, Flexible	Tubing, Flexible

B2 1-1/2 Series

HEATSHRINK 1 1/2" YELLOW FOOT

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length	Type	Shrinkage Ratio	Spool Size	Spool Size	Color	Shrink Temperature	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Material	Length [x]	Length [x]
Sumitomo Electric Interconnect Products, Inc. B2 1-1/2 YELLOW SPL	Flame Retardant	135 °C	-55 °C	39.3 mm	1.547 in	Enter Number of Feet in Order Quantity	Tubing, Flexible	2 to 1	61 m	200 '	Yellow	90 °C	19.1 mm	0.752 "	1.02 mm	0.04 in	Polyolefin (PO), Irradiated
Sumitomo Electric Interconnect Products, Inc. B2 1-1/2 BLACK 4FT	Flame Retardant, UV Resistant	135 °C	-55 °C	39.3 mm	1.547 in		Tubing, Flexible	2 to 1			Black	90 °C	19.1 mm	0.752 "	1.02 mm	0.04 in	Polyolefin (PO), Irradiated	1.22 m	4 ft
Sumitomo Electric Interconnect Products, Inc. B2 1-1/2 BLACK SPL	Flame Retardant, UV Resistant	135 °C	-55 °C	39.3 mm	1.547 in	Enter Number of Feet in Order Quantity	Tubing, Flexible	2 to 1	61 m	200 '	Black	90 °C	19.1 mm	0.752 "	1.02 mm	0.04 in	Polyolefin (PO), Irradiated
Sumitomo Electric Interconnect Products, Inc. B2 1-1/2 WHITE SPL	Flame Retardant	135 °C	-55 °C	39.3 mm	1.547 in	Enter Number of Feet in Order Quantity	Tubing, Flexible	2 to 1	61 m	200 '	White	90 °C	19.1 mm	0.752 "	1.02 mm	0.04 in	Polyolefin (PO), Irradiated
Sumitomo Electric Interconnect Products, Inc. B2 1-1/2 YELLOW 4FT	Flame Retardant	135 °C	-55 °C	39.3 mm	1.547 in		Tubing, Flexible	2 to 1			Yellow	90 °C	19.1 mm	0.752 "	1.02 mm	0.04 in	Polyolefin (PO), Irradiated	1.22 m	4 ft
Sumitomo Electric Interconnect Products, Inc. B2 1-1/2 WHITE 4FT	Flame Retardant	135 °C	-55 °C	39.3 mm	1.547 in		Tubing, Flexible	2 to 1			White	90 °C	19.1 mm	0.752 "	1.02 mm	0.04 in	Polyolefin (PO), Irradiated	1.22 m	4 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 2.73
		2	$ 2.51
		3	$ 2.39
		5	$ 2.25
		7	$ 2.16
		10	$ 2.07
		25	$ 1.85
		50	$ 1.70
		100	$ 1.57

Description

General part information

B2 1-1/2 Series

Heat Shrink Tubing, Flexible 1.547" (39.30mm) 2 to 1 Black Enter Number of Feet in Order Quantity
