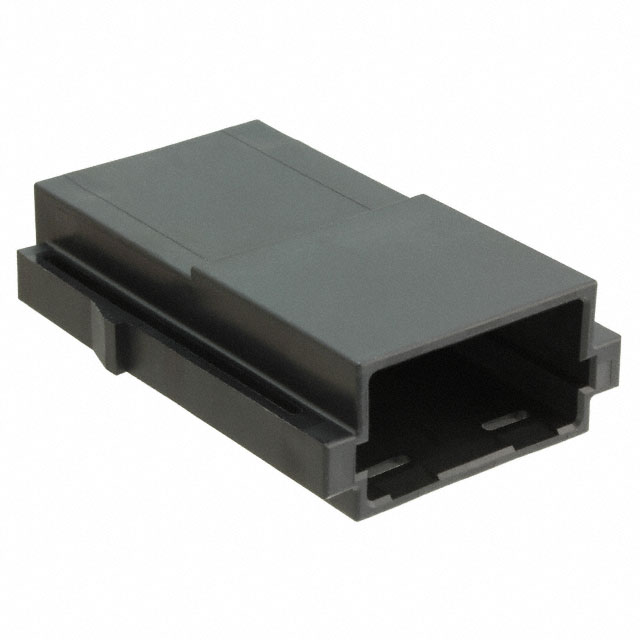

Specification	DW05S01CZZ1

Color	Black
Connector Type	Socket
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Friction Lock
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C

DW05S01C Series

Part	Note	Mounting Type	Contact Termination	Color	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Connector Type	Fastening Type	Contact Type	Insulation Material	Pin or Socket	Wire Gauge	Contact Finish
JAE Electronics DW05S01CZZ2	Contacts Not Included	Free Hanging (In-Line)	Crimp	Ivory	-40 °C	85 °C	1	Socket	Friction Lock	Female Socket	Glass Filled Polybutylene Terephthalate (PBT)
JAE Electronics DW05S01CAG1			Crimp									Socket	2 AWG	Gold
JAE Electronics DW05S01CZZ1	Contacts Not Included	Free Hanging (In-Line)	Crimp	Black	-40 °C	85 °C	1	Socket	Friction Lock	Female Socket	Glass Filled Polybutylene Terephthalate (PBT)
