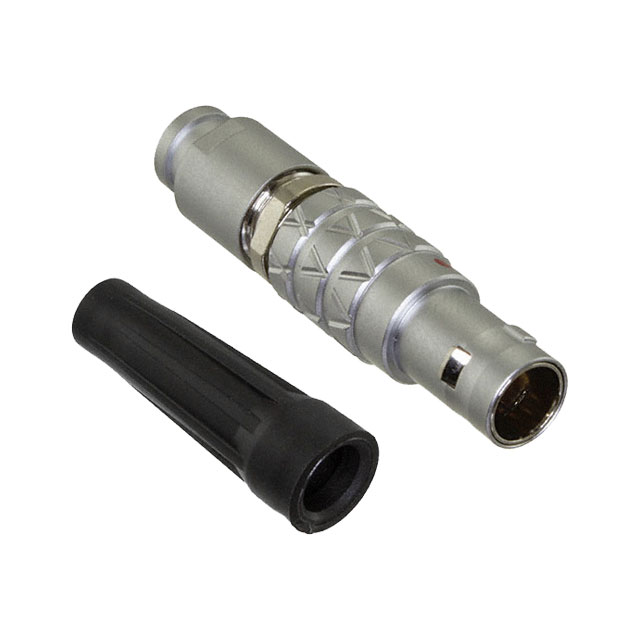

FLBB-04FGMS-GCP-207
ActiveAmphenol LTW
CONN PLUG MALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FLBB-04FGMS-GCP-207
ActiveAmphenol LTW
CONN PLUG MALE 4P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FLBB-04FGMS-GCP-207 |
|---|---|
| Applications | Testing Equipment & Measurement, Medical, Industrial, Telecommunications, Instrumentation |
| Backshell Material, Plating | Chrome, Copper Alloy |
| Cable Opening [diameter] | 0.205 in, 0.165 in |
| Cable Opening [diameter] | 4.2 mm |
| Cable Opening [diameter] | 5.2 mm |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 7 A |
| Fastening Type | Push-Pull |
| Features | Cable Clamp, Backshell |
| Ingress Protection | IP50 |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | G |
| Primary Material | Metal |
| Shell Finish | Chrome |
| Shell Material | Copper Alloy |
| Shell Size - Insert | B-4 |
| Shielding | Shielded |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 16.29 | |
| 10 | $ 15.09 | |||
| 15 | $ 14.44 | |||
| 25 | $ 14.01 | |||
Description
General part information
FLBB-04FGMS Series
4 Position Circular Connector Plug, Male Pins Solder Cup
