UPA895TS-A

Obsolete

CEL

RF TRANS 2NPN 5.5V 6.5GHZ 6SMINI

Search across all available documentation for this part.

Obsolete

CEL

RF TRANS 2NPN 5.5V 6.5GHZ 6SMINI

Technical Specifications

Parameters and characteristics for this part

Specification	UPA895TS-A

Current - Collector (Ic) (Max) [Max]	100 mA
Frequency - Transition	6.5 GHz
Mounting Type	Surface Mount
Noise Figure (dB Typ @ f) [Max]	2.5 dB
Noise Figure (dB Typ @ f) [Min]	1.9 dB
Operating Temperature	150 °C

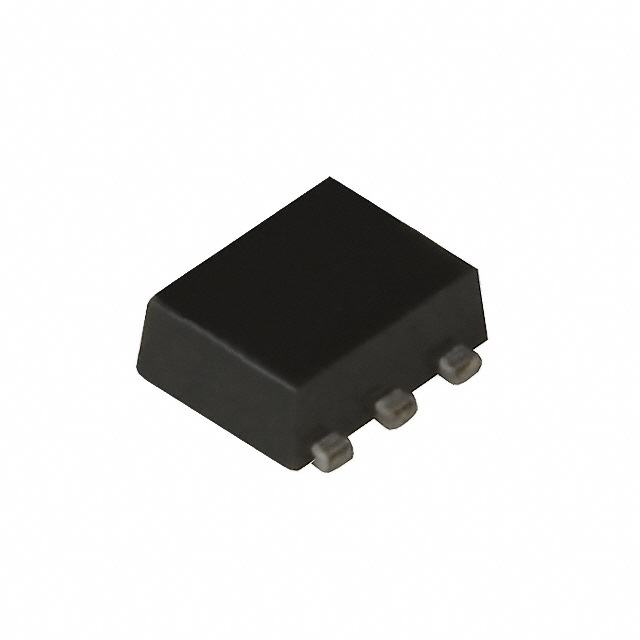

Package / Case	6-SMD, Flat Leads
Supplier Device Package	6-Super Lead-Less MiniMold
Transistor Type	2 NPN (Dual)
Voltage - Collector Emitter Breakdown (Max)	5.5 V

RF TRANS 2NPN 5.5V 6.5GHZ 6SMINI

Part	Package / Case	Voltage - Collector Emitter Breakdown (Max)	Mounting Type	Supplier Device Package	Transistor Type	Frequency - Transition	Operating Temperature	Noise Figure (dB Typ @ f) [Min]	Noise Figure (dB Typ @ f) [Max]	Current - Collector (Ic) (Max) [Max]
CEL UPA895TS-A	6-SMD, Flat Leads	5.5 V	Surface Mount	6-Super Lead-Less MiniMold	2 NPN (Dual)	6.5 GHz	150 °C	1.9 dB	2.5 dB	100 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Transistor 2 NPN (Dual) 5.5V 100mA 6.5GHz 130mW Surface Mount 6-Super Lead-Less MiniMold
