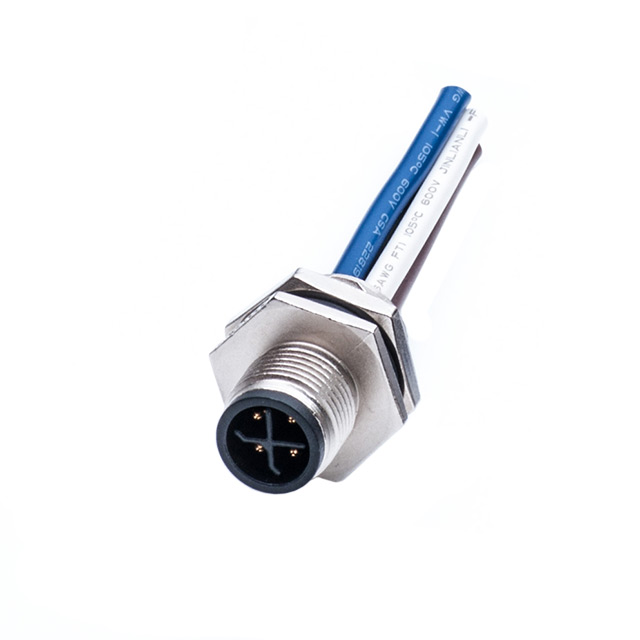

M12S-04PMMS-SH8B15

Active

Amphenol LTW

CONN PLUG MALE 4P WIR LEAD 0.49'

Search across all available documentation for this part.

Active

Amphenol LTW

CONN PLUG MALE 4P WIR LEAD 0.49'

Technical Specifications

Parameters and characteristics for this part

Specification	M12S-04PMMS-SH8B15

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	12 A
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	S
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-4
Shielding	Shielded
Termination	Wire Leads
Voltage Rating	630 VAC/DC

Part	1st Connector Gender	Cable Type	Usage	1st Connector Number of Positions Loaded	Color	2nd Connector Type	Shielding	1st Connector Mounting Type	1st Connector Number of Positions	1st Connector Type	Assembly Configuration	1st Connector Shell Size - Insert	1st Connector Orientation	Ingress Protection	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Voltage Rating	Current Rating (Amps)	Number of Positions	Contact Material	Termination	Connector Type	Contact Finish - Mating	Shell Finish	Shell Material	Primary Material	Shell Size - Insert	Mounting Feature
Amphenol LTW M12S-04PMMS-SF8B30	Male Pins	Individual	Industrial Environments	All	Multiple	Wire Leads	Unshielded	Panel Mount	4	Receptacle	Standard	M12	S	IP68 - Dust Tight Waterproof; NMEA 2000
Amphenol LTW M12S-04PMMS-SH8C15					Silver		Shielded							IP68 - Dust Tight Waterproof	S	85 °C	-40 °C	Polyamide (PA) Nylon Glass Filled	630 VAC/DC	12 A	4	Copper Alloy	Wire Leads	Male Pins Plug	Gold	Nickel	Zinc Alloy	Metal	M12-4	Bulkhead - Rear Side Nut
Amphenol LTW M12S-04PMMS-SH8B15					Silver		Shielded							IP68 - Dust Tight Waterproof	S	85 °C	-40 °C	Polyamide (PA) Nylon Glass Filled	630 VAC/DC	12 A	4	Copper Alloy	Wire Leads	Male Pins Plug	Gold	Nickel	Zinc Alloy	Metal	M12-4	Bulkhead - Rear Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Male Pins Wire Leads
