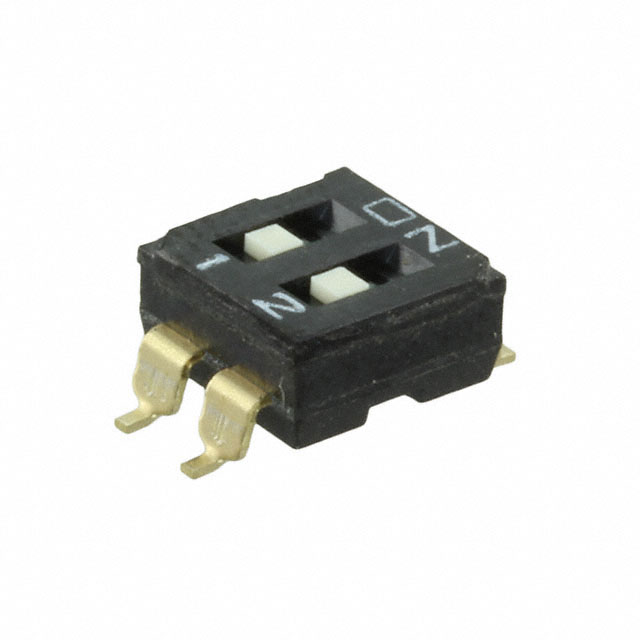

A6S-2101-H(VNM)

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Washable	Length [x]	Length [x]	Actuator Type	Number of Positions	Mounting Type	Mechanical Life	Electrical Life	Voltage Rating	Termination Style	Circuit	Current Rating (Amps)	Actuator Level	Contact Finish	Height Above Board	Height Above Board	Pitch [x]	Pitch	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]
Omron Electronics Inc-EMC Div A6S-2101-H(VNM)		0.237 "	6.02 mm	Slide (Standard)	2	Surface Mount	1000 Cycles	1000 Cycles	24 VDC	Gull Wing	SPST	25 mA	Flush, Recessed	Gold	3.7 mm	0.146 in	0.1 in	Full	2.54 mm	-20 C	70 °C
