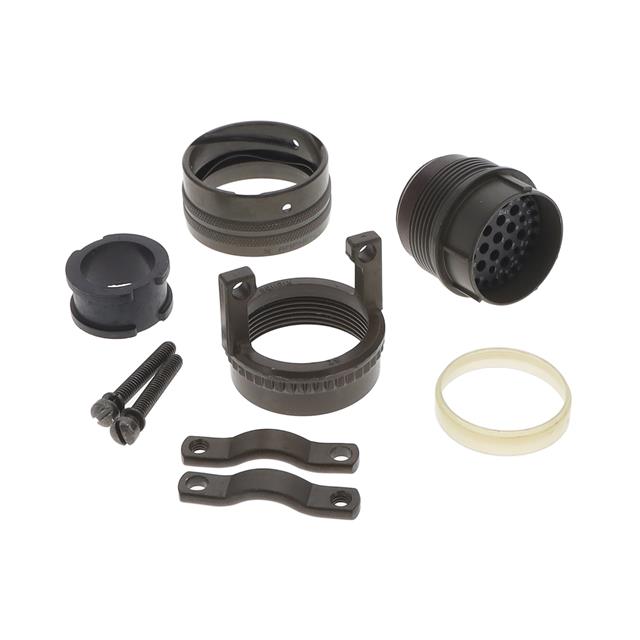

MS3126F22-41P(LC)
ActiveAmphenol Industrial Operations
PLUG
Deep-Dive with AI
Search across all available documentation for this part.
MS3126F22-41P(LC)
ActiveAmphenol Industrial Operations
PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3126F22-41P(LC) | MS3126F22 Series |
|---|---|---|
| Applications | - | Military, Mass Transit, Instrumentation, Aerospace, Industrial, Communication Systems |
| Backshell Material, Plating | - | Aluminum, Olive Drab Chromate over Cadmium |
| Cable Opening | - | 0.75 in |
| Cable Opening | - | 19.05 mm |
| Color | - | Olive Drab |
| Connector Type | - | Plug, Male Pins, Female Sockets |
| Contact Finish - Mating | - | Gold |
| Contact Material | - | Copper Alloy |
| Current Rating (Amps) | - | 7.5 - 13 A |
| Fastening Type | - | Bayonet Lock |
| Features | - | Strain Relief, Coupling Nut, Cable Clamp, Backshell |
| Grade | - | Military |
| Ingress Protection | - | Environment Resistant |
| Insert Material | - | Neoprene |
| Mounting Type | - | Free Hanging (In-Line) |
| null | - | |
| Number of Positions | - | 21 - 55 positions |
| Operating Temperature | - | -55 °C |
| Operating Temperature | - | 125 °C |
| Orientation | - | X, N, Y |
| Primary Material | - | Metal |
| Qualification | - | MIL-DTL-26482 Series I |
| Shell Finish | - | Olive Drab Chromate over Cadmium |
| Shell Material | - | Aluminum |
| Shell Size - Insert | - | 21 - 55 |
| Shell Size - Insert | - | 22 |
| Shielding | - | Unshielded |
| Termination | - | Crimp |
| Voltage Rating | - | 600 - 1000 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 129.12 | |
MS3126F22 Series
PLUG
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Termination | Qualification | Applications | Cable Opening [custom] | Cable Opening [custom] | Shell Material | Voltage Rating | Mounting Type | Primary Material | Shell Finish | Contact Material | Current Rating (Amps) | Connector Type | Color | Ingress Protection | Fastening Type | Contact Finish - Mating | Orientation | Features | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Insert Material | Shielding | Grade | Backshell Material, Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3126F22-41S(LC) | ||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3126F22-55PX | -55 °C | 125 °C | 55 positions | Crimp | MIL-DTL-26482 Series I | Aerospace, Industrial, Instrumentation, Mass Transit, Military | 0.75 in | 19.05 mm | Aluminum | 600 VAC | Free Hanging (In-Line) | Metal | Olive Drab Chromate over Cadmium | Copper Alloy | 7.5 A | Male Pins, Plug | Olive Drab | Environment Resistant | Bayonet Lock | Gold | X | Coupling Nut, Strain Relief | 55 | 22 | Neoprene | Unshielded | Military | |
Amphenol Industrial Operations MS3126F22-21P | -55 °C | 125 °C | 21 | Crimp | MIL-DTL-26482 Series I | Aerospace, Industrial, Instrumentation, Mass Transit, Military | 0.75 in | 19.05 mm | Aluminum | 1000 VAC | Free Hanging (In-Line) | Metal | Olive Drab Chromate over Cadmium | Copper Alloy | 13 A | Male Pins, Plug | Olive Drab | Environment Resistant | Bayonet Lock | Gold | N | Coupling Nut, Strain Relief | 21 | 22 | Neoprene | Unshielded | Military | |
Amphenol Industrial Operations MS3126F22-32PY | -55 °C | 125 °C | Crimp | MIL-DTL-26482 Series I | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | 0.75 in | 19.05 mm | Aluminum | 600 VAC | Free Hanging (In-Line) | Metal | Olive Drab Chromate over Cadmium | Copper Alloy | 7.5 A | Male Pins, Plug | Olive Drab | Bayonet Lock | Gold | Y | Backshell, Cable Clamp, Coupling Nut | 32 | 22 | Neoprene | Unshielded | Military | Aluminum, Olive Drab Chromate over Cadmium | ||
Amphenol Industrial Operations MS3126F22-55PZ | ||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3126F22-21S(LC) | ||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3126F22-41P(LC) | ||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3126F22-55SW(LC) | ||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3126F22-21SY | -55 °C | 125 °C | 21 | Crimp | MIL-DTL-26482 Series I | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | 0.75 in | 19.05 mm | Aluminum | 1000 VAC | Free Hanging (In-Line) | Metal | Olive Drab Chromate over Cadmium | Copper Alloy | 13 A | Female Sockets, Plug | Olive Drab | Bayonet Lock | Gold | Y | Backshell, Cable Clamp, Coupling Nut | 21 | 22 | Neoprene | Unshielded | Military | Aluminum, Olive Drab Chromate over Cadmium | |
Amphenol Industrial Operations MS3126F-22-55S | -55 °C | 125 °C | 55 positions | Crimp | MIL-DTL-26482 Series I | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Aluminum | Free Hanging (In-Line) | Metal | Olive Drab Chromate over Cadmium | Copper Alloy | Female Sockets, Plug | Olive Drab | Environment Resistant | Bayonet Lock | Gold | N | Backshell, Cable Clamp, Coupling Nut | 55 | 22 | Neoprene | Unshielded | Military | Aluminum, Olive Drab Chromate over Cadmium |
Description
General part information
MS3126F22 Series
Position Circular Connector
Documents
Technical documentation and resources
No documents available
