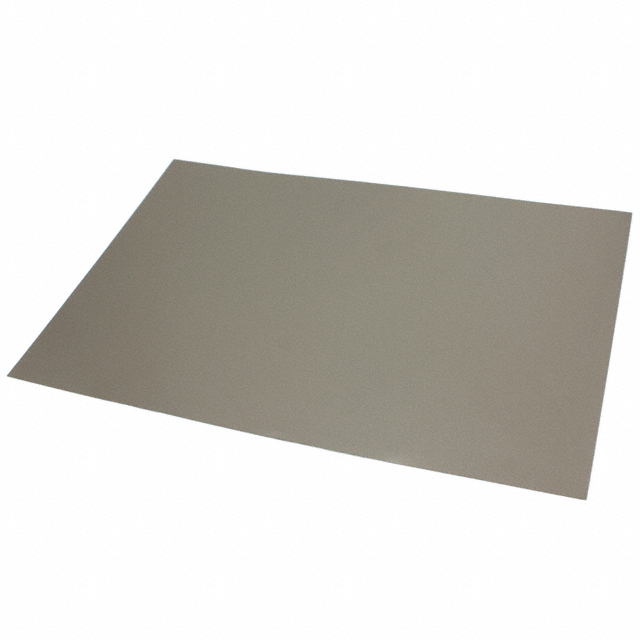

IFL12-200NB300X200

TDK Corporation

RF EMI SHIELD SHEET 300MMX200MM

Search across all available documentation for this part.

TDK Corporation

RF EMI SHIELD SHEET 300MMX200MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IFL12-200NB300X200	IFL12 Series

Adhesive	Single Sided, Non-Conductive	Single Sided, Non-Conductive
Length	-	328.084 ft
Length	-	100 m
Length [x]	300 mm	300 mm
Length [x]	11.811 in	11.811 in
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shape	Sheet	Sheet, Roll
Thickness - Overall	0.2 mm	0.2 mm
Thickness - Overall	0.008 "	0.008 - 0.05 "
Thickness - Overall	-	0.004 "
Thickness - Overall	-	0.1 mm
Thickness - Overall	-	0.002 in
Type	Shielding Sheet	Shielding Sheet, Shielding Tape
Width	-	11.811 in
Width	-	300 mm
Width [x]	7.874 in	7.874 in
Width [x]	200 mm	200 mm

RF EMI SHIELD SHEET 300MMX200MM

Part	Width [x]	Width [x]	Thickness - Overall	Thickness - Overall	Adhesive	Operating Temperature [Max]	Operating Temperature [Min]	Type	Shape	Length [x]	Length [x]	Thickness - Overall [custom]	Thickness - Overall [custom]	Width [y]	Width [y]	Length	Length	Thickness - Overall [custom]
TDK Corporation IFL12-200NB300X200	7.874 in	200 mm	0.2 mm	0.008 "	Non-Conductive, Single Sided	85 °C	-40 °C	Shielding Sheet	Sheet	300 mm	11.811 in
TDK Corporation IFL12-100RN1HRX300					Non-Conductive, Single Sided	85 °C	-40 °C	Shielding Tape	Roll			0.004 "	0.1 mm	11.811 in	300 mm	328.084 ft	100 m
TDK Corporation IFL12-100NB300X200	7.874 in	200 mm			Non-Conductive, Single Sided	85 °C	-40 °C	Shielding Sheet	Sheet	300 mm	11.811 in	0.004 "	0.1 mm
TDK Corporation IFL12-050RN1HRX300				0.05 mm	Non-Conductive, Single Sided	85 °C	-40 °C	Shielding Tape	Roll					11.811 in	300 mm	328.084 ft	100 m	0.002 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30	$ 36.30

General part information

RF EMI Shielding Sheet Flexield IFL Non-Conductive, Single Sided 7.874" (200.00mm) X 11.811" (300.00mm) X 0.008" (0.20mm)
