Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T1210241121-000 | T121 Series |
|---|---|---|
| Connector Type | Hood | Hood |
| Housing Color | Silver | Gray, Silver |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H24B | H10B, H24B, H16B, H32B |
| Size / Dimension [x] | 4.724 " | 2.874 - 4.724 in |
| Size / Dimension [x] | 120 mm | 73 - 120 mm |
| Size / Dimension [y] | 1.693 in | 1.693 - 3.248 in |
| Size / Dimension [y] | 43 mm | 43 - 82.5 mm |
| Size / Dimension [z] | 60 mm | 60 - 76 mm |
| Size / Dimension [z] | 2.362 " | 2.362 - 2.992 " |
| Style | Side Entry | Side Entry, Side Entry, Dual |
| Thread Size | PG21 | M25, M32, PG21, PG16, M20, PG13.5, PG36, M16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.38 | |
| 10 | $ 5.56 | |||
| 25 | $ 5.42 | |||
| 50 | $ 5.27 | |||
| 100 | $ 5.15 | |||
T121 Series
H10B-TS-2M25
| Part | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Thread Size | Lock Location | Size | Housing Material | Housing Finish | Housing Color | Connector Type | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T1210100225-000 | 73 mm | 60 mm | 43 mm | 2.874 in | 2.362 " | 1.693 in | 125 °C | -40 °C | IP65 - Dust Tight, Water Resistant | M25 | Locking Clip (2) on Base Bottom | H10B | Aluminum Alloy, Die Cast | Powder Coated | Gray | Hood | Side Entry |
TE Connectivity AMP Connectors T1210240225-000 | 120 mm | 60 mm | 43 mm | 4.724 " | 2.362 " | 1.693 in | 125 °C | -40 °C | IP65 - Dust Tight, Water Resistant | M25 | Locking Clip (2) on Base Bottom | H24B | Aluminum Alloy, Die Cast | Powder Coated | Gray | Hood | Side Entry, Dual |
TE Connectivity AMP Connectors T1210240132-000 | 120 mm | 60 mm | 43 mm | 4.724 " | 2.362 " | 1.693 in | 125 °C | -40 °C | IP65 - Dust Tight, Water Resistant | M32 | Locking Clip (2) on Base Bottom | H24B | Aluminum Alloy, Die Cast | Powder Coated | Gray | Hood | Side Entry |
TE Connectivity AMP Connectors T1210241121-000 | 120 mm | 60 mm | 43 mm | 4.724 " | 2.362 " | 1.693 in | 125 °C | -40 °C | IP65 - Dust Tight, Water Resistant | PG21 | Locking Clip (2) on Base Bottom | H24B | Aluminum Alloy, Die Cast | Powder Coated | Silver | Hood | Side Entry |
TE Connectivity AMP Connectors T1210100216-000 | 73 mm | 60 mm | 43 mm | 2.874 in | 2.362 " | 1.693 in | 125 °C | -40 °C | IP65 - Dust Tight, Water Resistant | PG16 | Locking Clip (2) on Base Bottom | H10B | Aluminum Alloy, Die Cast | Powder Coated | Gray | Hood | Side Entry |
TE Connectivity AMP Connectors T1210100121-000 | 73 mm | 60 mm | 43 mm | 2.874 in | 2.362 " | 1.693 in | 125 °C | -40 °C | IP65 - Dust Tight, Water Resistant | PG21 | Locking Clip (2) on Base Bottom | H10B | Aluminum Alloy, Die Cast | Powder Coated | Gray | Hood | Side Entry |
TE Connectivity AMP Connectors T1210160120-000 | 93.5 mm | 60 mm | 43 mm | 3.681 " | 2.362 " | 1.693 in | 125 °C | -40 °C | IP65 - Dust Tight, Water Resistant | M20 | Locking Clip (2) on Base Bottom | H16B | Aluminum Alloy, Die Cast | Powder Coated | Gray | Hood | Side Entry |
TE Connectivity AMP Connectors T1210161121-100 | 93.5 mm | 60 mm | 43 mm | 3.681 " | 2.362 " | 1.693 in | 125 °C | -40 °C | IP65 - Dust Tight, Water Resistant | PG21 | Locking Clip (2) on Base Bottom | H16B | Aluminum Alloy, Die Cast | Powder Coated | Gray | Hood | Side Entry |
TE Connectivity AMP Connectors T1210101116-000 | 73 mm | 60 mm | 43 mm | 2.874 in | 2.362 " | 1.693 in | 125 °C | -40 °C | IP65 - Dust Tight, Water Resistant | PG16 | Locking Clip (2) on Base Bottom | H10B | Aluminum Alloy, Die Cast | Powder Coated | Silver | Hood | Side Entry |
TE Connectivity AMP Connectors T1210101125-000 | 73 mm | 60 mm | 43 mm | 2.874 in | 2.362 " | 1.693 in | 125 °C | -40 °C | IP65 - Dust Tight, Water Resistant | M25 | Locking Clip (2) on Base Bottom | H10B | Aluminum Alloy, Die Cast | Powder Coated | Silver | Hood | Side Entry |
TE Connectivity AMP Connectors T1210240120-000 | 120 mm | 60 mm | 43 mm | 4.724 " | 2.362 " | 1.693 in | 125 °C | -40 °C | IP65 - Dust Tight, Water Resistant | M20 | Locking Clip (2) on Base Bottom | H24B | Aluminum Alloy, Die Cast | Powder Coated | Gray | Hood | Side Entry |
TE Connectivity AMP Connectors T1210100113-000 | 73 mm | 60 mm | 43 mm | 2.874 in | 2.362 " | 1.693 in | 125 °C | -40 °C | IP65 - Dust Tight, Water Resistant | PG13.5 | Locking Clip (2) on Base Bottom | H10B | Aluminum Alloy, Die Cast | Powder Coated | Gray | Hood | Side Entry |
TE Connectivity AMP Connectors T1210320125-000 | 94 mm | 76 mm | 82.5 mm | 3.701 " | 2.992 in | 3.248 in | 125 °C | -40 °C | IP65 - Dust Tight, Water Resistant | M25 | Locking Clip (2) on Base Bottom | H32B | Aluminum Alloy, Die Cast | Powder Coated | Gray | Hood | Side Entry |
TE Connectivity AMP Connectors T1210320136-000 | 94 mm | 76 mm | 82.5 mm | 3.701 " | 2.992 in | 3.248 in | 125 °C | -40 °C | IP65 - Dust Tight, Water Resistant | PG36 | Locking Clip (2) on Base Bottom | H32B | Aluminum Alloy, Die Cast | Powder Coated | Gray | Hood | Side Entry |
TE Connectivity AMP Connectors T1210243216-000 | 120 mm | 60 mm | 43 mm | 4.724 " | 2.362 " | 1.693 in | 125 °C | -40 °C | IP65 - Dust Tight, Water Resistant | M16, M32 | Locking Clip (2) on Base Bottom | H24B | Aluminum Alloy, Die Cast | Powder Coated | Gray | Hood | Side Entry, Dual |
TE Connectivity AMP Connectors T1210320120-000 | 94 mm | 76 mm | 82.5 mm | 3.701 " | 2.992 in | 3.248 in | 125 °C | -40 °C | IP65 - Dust Tight, Water Resistant | M20 | Locking Clip (2) on Base Bottom | H32B | Aluminum Alloy, Die Cast | Powder Coated | Gray | Hood | Side Entry |
TE Connectivity AMP Connectors T1210240116-000 | 120 mm | 60 mm | 43 mm | 4.724 " | 2.362 " | 1.693 in | 125 °C | -40 °C | IP65 - Dust Tight, Water Resistant | PG16 | Locking Clip (2) on Base Bottom | H24B | Aluminum Alloy, Die Cast | Powder Coated | Gray | Hood | Side Entry |
Description
General part information
T121 Series

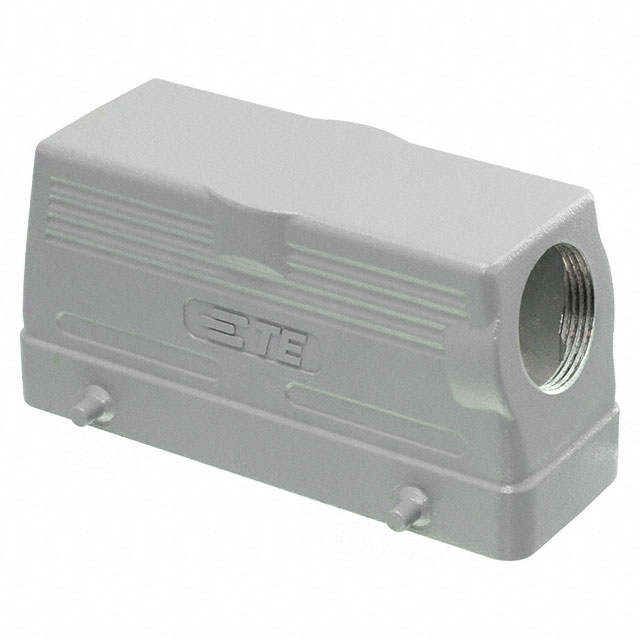

Hood Connector Side Entry PG21 H24B IP65 - Dust Tight, Water Resistant
