4026-0.5-5

Active

3M (TC)

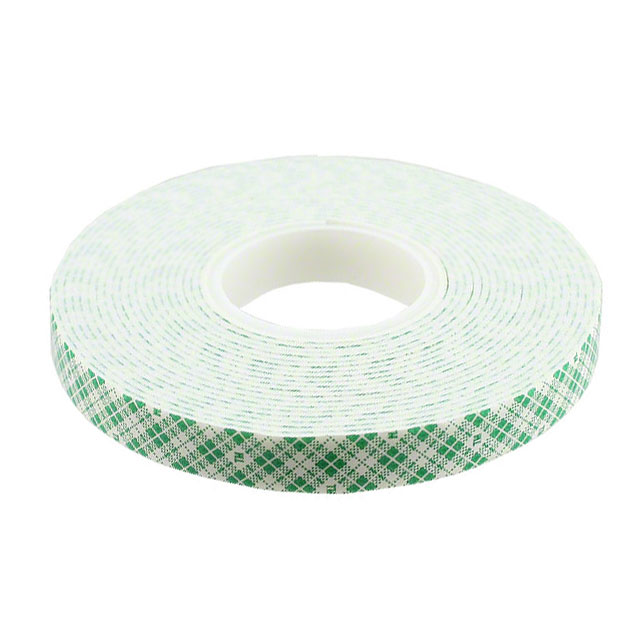

TAPE DBL SIDED NATURAL 1/2"X5YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE DBL SIDED NATURAL 1/2"X5YDS

Technical Specifications

Parameters and characteristics for this part

Specification	4026-0.5-5

Adhesive	Acrylic, 100
Backing, Carrier	Polyurethane Foam
Color	Natural
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Tape Type	Double Coated, Double Sided
Temperature Range [Max]	38 °C
Temperature Range [Max]	100 °F
Temperature Range [Min]	21 °C
Temperature Range [Min]	70 °F
Thickness	0.063 "
Thickness	63 mils
Thickness	1.6 mm
Thickness	0.0625 "
Usage	Holding, Mounting, Joining
Width	0.5 in
Width	12.7 mm
Width	0.5 in

Part	Shelf Life Start	Usage	Thickness	Thickness	Thickness	Thickness	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Width [x]	Width [x]	Tape Type	Length	Length	Length	Shelf Life	Color	Adhesive	Backing, Carrier	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Width	Width	Width
3M (TC) 4026-3-5	Date of Manufacture	Holding Joining Mounting	0.063 "	63 mils	1.6 mm	0.0625 "	38 °C	21 °C	100 °F	70 °F	76.2 mm	3 in	Double Coated Double Sided	4.6 m	15 ft	5 yd	24 Months	Natural	Acrylic 100	Polyurethane Foam	70 °F	21 °C
3M (TC) 4026-12-5	Date of Manufacture	Holding Joining Mounting	0.063 "	63 mils	1.6 mm	0.0625 "	38 °C	21 °C	100 °F	70 °F	304.8 mm	12 in	Double Coated Double Sided	4.6 m	15 ft	5 yd	24 Months	Natural	Acrylic 100	Polyurethane Foam	70 °F	21 °C
3M (TC) 4026-0.5-5	Date of Manufacture	Holding Joining Mounting	0.063 "	63 mils	1.6 mm	0.0625 "	38 °C	21 °C	100 °F	70 °F			Double Coated Double Sided	4.6 m	15 ft	5 yd	24 Months	Natural	Acrylic 100	Polyurethane Foam	70 °F	21 °C	0.5 in	12.7 mm	0.5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Double Coated, Double Sided Tape Acrylic, 100 Adhesive Natural 0.50" (12.70mm) 1/2" X 15' (4.6m) 5 yds
