XAMR20C

Obsolete

SunLED

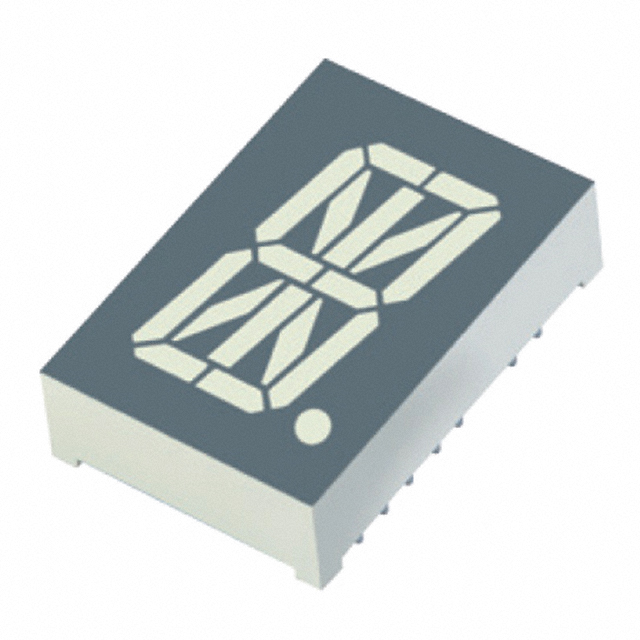

DISPLAY 16SEG 0.8" SGL RED 18DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XAMR20C

Obsolete

SunLED

DISPLAY 16SEG 0.8" SGL RED 18DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XAMR20C

Color	Red
Common Pin	Common Cathode
Current - Test	10 mA
Digit/Alpha Size	20.32 mm
Digit/Alpha Size	0.8 in
Display Type	16-Segment, Alphanumeric
Millicandela Rating	8 mcd
Number of Characters [custom]	1
Package / Case	15.24 mm
Package / Case	0.6 in
Package / Case	18-DIP
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	27.7 mm
Size / Dimension [x]	1.091 in
Size / Dimension [y]	20 mm
Size / Dimension [y]	0.787 in
Size / Dimension [z]	0.335 "
Size / Dimension [z]	8.5 mm
Voltage - Forward (Vf) (Typ)	1.8 V
Wavelength - Peak	655 nm

XAMR20 Series

DISPLAY 16SEG 0.8" SGL RED 18DIP

Part	Color	Display Type	Package / Case	Package / Case	Package / Case	Wavelength - Peak	Power Dissipation (Max) [Max]	Digit/Alpha Size	Digit/Alpha Size	Common Pin	Number of Characters [custom]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Millicandela Rating	Current - Test	Voltage - Forward (Vf) (Typ)
SunLED XAMR20C	Red	16-Segment, Alphanumeric	15.24 mm	0.6 in	18-DIP	655 nm	75 mw	20.32 mm	0.8 in	Common Cathode	1	20 mm	27.7 mm	0.335 "	0.787 in	1.091 in	8.5 mm	8 mcd	10 mA	1.8 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XAMR20 Series

Display Modules - LED Character and Numeric Red 16-Segment, Alphanumeric 1 Character Common Cathode 1.8V 10mA 1.091" H x 0.787" W x 0.335" D (27.70mm x 20.00mm x 8.50mm) 18-DIP (0.600", 15.24mm)
