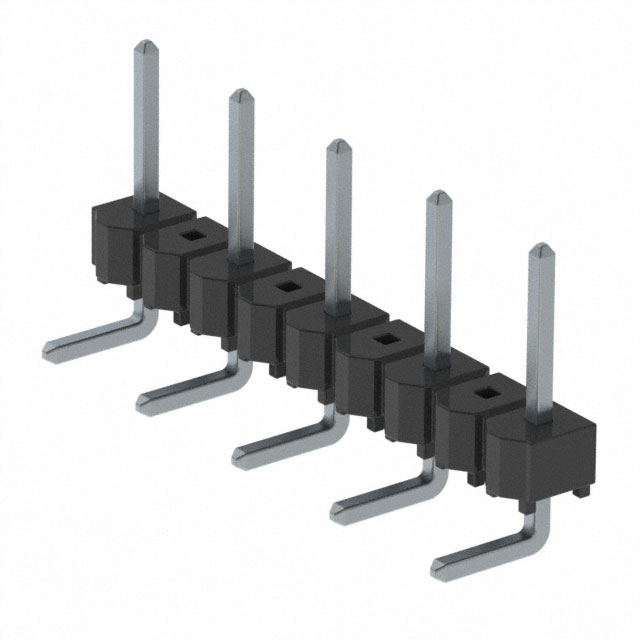

HTSW-205-08-T-S-RA

Active

Samtec Inc.

CONN HEADER R/A 5POS 5.08MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER R/A 5POS 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	HTSW-205-08-T-S-RA

null

Part	Connector Type	Current Rating (Amps)	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Style	Pitch - Mating	Pitch - Mating	Contact Type	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Termination	Contact Material	Insulation Color	Shrouding	Fastening Type	Mounting Type	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Material Flammability Rating	Insulation Height	Insulation Height	Number of Rows	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Samtec Inc. HTSW-205-08-G-S
Samtec Inc. HTSW-205-07-G-S	Header	Varies by Wire Gauge	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Gold	Board to Board Cable	5.08 mm	0.2 in	Male Pin	2.54 mm	0.1 in	0.43 in	10.92 mm	Solder	Phosphor Bronze	Natural	Unshrouded	Push-Pull	Through Hole	0.23 in	5.84 mm	Gold	3 µin	0.076 µm	Square	UL94 V-0	0.1 in	2.54 mm	1	All	10 çin	0.25 çm
Samtec Inc. HTSW-205-07-SS-S	Header	Varies by Wire Gauge	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Gold	Board to Board Cable	5.08 mm	0.2 in	Male Pin	2.54 mm	0.1 in	0.43 in	10.92 mm	Solder	Phosphor Bronze	Natural	Unshrouded	Push-Pull	Through Hole	0.23 in	5.84 mm	Tin			Square	UL94 V-0	0.1 in	2.54 mm	1	All	30 Áin	0.76 Ám
Samtec Inc. HTSW-205-08-T-S-RA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.00

General part information

Connector Header position

Technical documentation and resources
