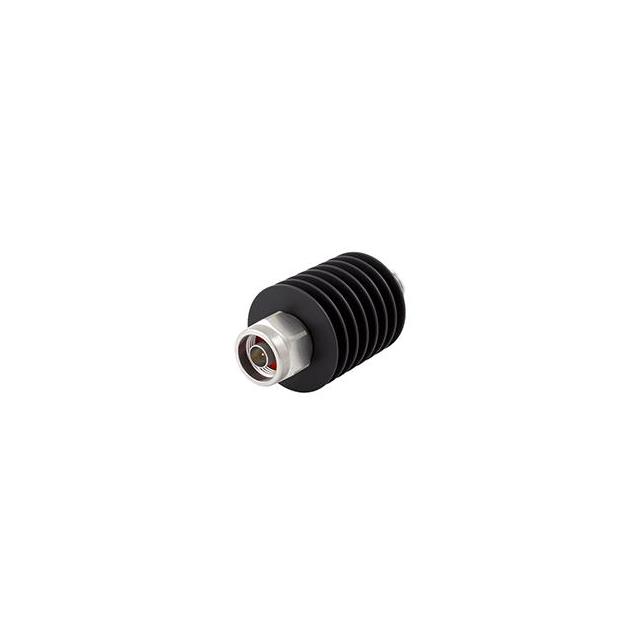

BW-N20W20+

Active

MINI-CIRCUITS

FXD ATTEN / N / 20DB 20W ROHS

Search across all available documentation for this part.

Active

MINI-CIRCUITS

FXD ATTEN / N / 20DB 20W ROHS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 223.07

General part information

RF Attenuators 20dB 0 Hz ~ 18 GHz 50 Ohms 5W N-Type In-Line Module

Technical documentation and resources

Part	Impedance	Power (Watts)	Package / Case	Attenuation Value	Frequency Range [Max]
MINI-CIRCUITS BW-N20W50+	50 Ohms	50 W	N-Type In-Line Module	20 dB	18 GHz
MINI-CIRCUITS BW-N20W20+	50 Ohms	5 W	N-Type In-Line Module	20 dB	18 GHz
MINI-CIRCUITS BW-N20W5+	50 Ohms	5 W	N-Type In-Line Module	20 dB	18 GHz
