32K607-302L5

Active

Rosenberger

CONN SMA JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN SMA JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	32K607-302L5

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	RG-174A, 316, 188A
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms

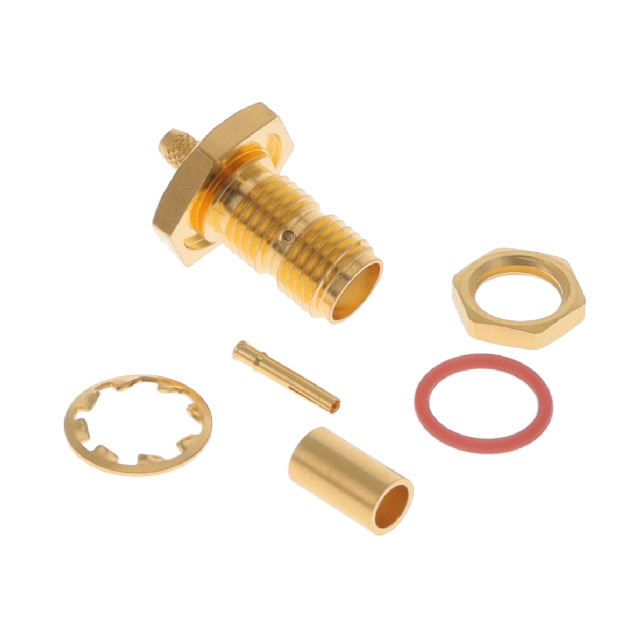

Includes	1 Connector, 1 Lockwasher, 1 Ferrule, 1 Contact, 1 Nut
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	480 V

Part	Body Finish	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Body Material	Center Contact Material	Housing Color	Cable Group	Shield Termination	Mounting Feature	Impedance	Voltage Rating	Number of Ports	Connector Type	Connector Style	Mating Cycles	Frequency - Max [Max]	Center Contact Plating	Includes
Rosenberger 32K607-303N5	White Bronze	Solder	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Beryllium Copper	Silver	RG-316	Crimp	Bulkhead	50 Ohms	480 V	1	Female Socket Jack	SMA	500	12.4 GHz	Gold
Rosenberger 32K607-302L5	Gold	Solder	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Beryllium Copper	Gold	188A 316 RG-174A	Crimp	Bulkhead - Front Side Nut	50 Ohms	480 V	1	Female Socket Jack	SMA	500	12.4 GHz	Gold	1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
