Technical Specifications
Parameters and characteristics for this part
| Specification | AWG28-60/G/300 |
|---|---|
| Cable Type | Flat Cable |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 36 AWG |
| First Conductor Mark | Red |
| Insulation Resistance | 100 MOhms |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length | 15.24 m, 91.44 m |
| Length | 50 ft, 300 ft |
| Length [x] | 3.05 m |
| Length [x] | 10 ft |
| Number of Conductors | 60 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -10 °C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Ratings | UL Style 2651 |
| Ribbon Thickness | 0.89 mm |
| Ribbon Thickness | 0.035 in |
| Ribbon Width | 76.2 mm |
| Ribbon Width | 3 in |
| Shielding | Unshielded |
| Voltage | 300 V |
| Wire Gauge | 28 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 30.94 | |
| 1 | $ 16.61 | |||
| 1 | $ 131.53 | |||
| Spool | 1 | $ 620.53 | ||
| 2 | $ 562.03 | |||
| 3 | $ 530.49 | |||
| 5 | $ 493.39 | |||
| 7 | $ 470.48 | |||
| 10 | $ 447.45 | |||
| 25 | $ 393.83 | |||
Description
General part information
AWG28-60 Series

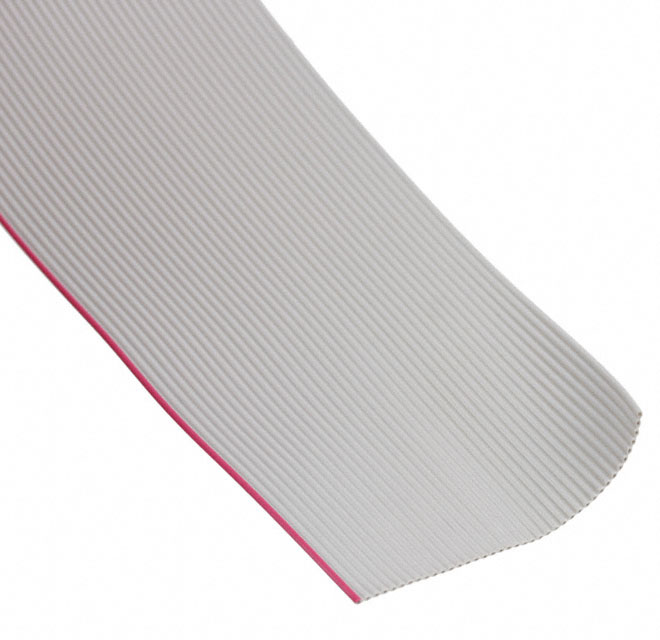

Flat Ribbon Cable Gray 60 Conductors 0.050" (1.27mm) Flat Cable 300.0' (91.44m)
