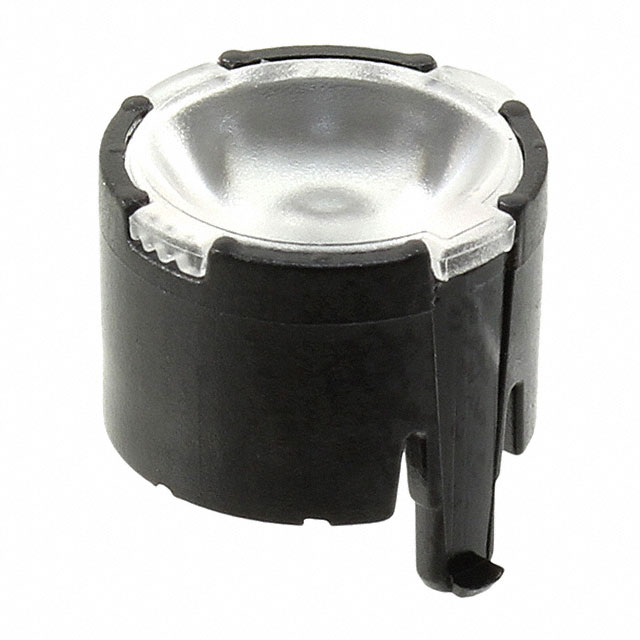

FP13031_LISA2-W-CLIP

Active

LEDIL

LED LENS, WIDE, TRANSPARENT, 9.9 MM, ROUND, PMMA (POLYMETHYLMETHACRYLATE)

Search across all available documentation for this part.

Active

LEDIL

LED LENS, WIDE, TRANSPARENT, 9.9 MM, ROUND, PMMA (POLYMETHYLMETHACRYLATE)

Technical Specifications

Parameters and characteristics for this part

Specification	FP13031_LISA2-W-CLIP

Color	Clear
For Use With/Related Manufacturer	Samsung, Lumileds, LG Innotek, Nichia, Cree, Osram
Lens Size [diameter]	9.9 mm
Lens Transparency	Diffused
Material	Acrylic
Mounting Type	Snap-In
Number of LEDs	1
Optical Pattern	Wide
Type	Lens With Holder
Viewing Angle [Max]	41 °
Viewing Angle [Min]	22 °

LED LENS, WIDE, TRANSPARENT, 9.9 MM, ROUND, PMMA (POLYMETHYLMETHACRYLATE)

Part	Mounting Type	For Use With/Related Manufacturer	Type	Number of LEDs	Color	Viewing Angle [Min]	Viewing Angle [Max]	Material	Optical Pattern	Lens Size [diameter]	Lens Transparency
LEDIL FP13031_LISA2-W-CLIP	Snap-In	Cree, LG Innotek, Lumileds, Nichia, Osram, Samsung	Lens With Holder	1	Clear	22 °	41 °	Acrylic	Wide	9.9 mm	Diffused

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Lens With Holder Clear 22° ~ 41° Wide Snap-In
