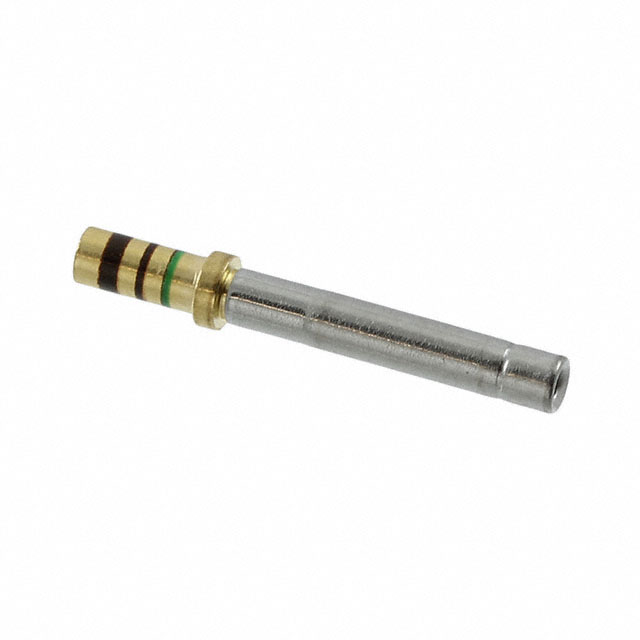

M39029/5-115
ActiveAmphenol Aerospace Operations
CONTACT SOCKET 20-24AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
M39029/5-115
ActiveAmphenol Aerospace Operations
CONTACT SOCKET 20-24AWG CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M39029/5-115 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Contact Size | 20 |
| Contact Termination | Crimp |
| Contact Type | Socket |
| Grade | Military |
| Qualification | MIL-C-39029 |
| Type | Power, Machined |
| Wire Gauge or Range - AWG [Max] | 24 AWG |
| Wire Gauge or Range - AWG [Min] | 20 AWG |
| Wire Gauge or Range - mm˛ [Max] [custom] | 0.6 mm˛ |
| Wire Gauge or Range - mm˛ [Min] [custom] | 0.2 mm˛ |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.84 | |
| 1 | $ 2.97 | |||
| 10 | $ 0.71 | |||
| 10 | $ 2.27 | |||
| 25 | $ 0.68 | |||
| 25 | $ 2.04 | |||
| 50 | $ 0.66 | |||
| 50 | $ 1.89 | |||
| 100 | $ 1.75 | |||
| 100 | $ 0.63 | |||
| 250 | $ 1.59 | |||
| 250 | $ 0.58 | |||
| 500 | $ 0.52 | |||
| 500 | $ 1.48 | |||
| 1000 | $ 0.46 | |||
| 1000 | $ 1.38 | |||
| 2500 | $ 0.42 | |||
| 2500 | $ 1.26 | |||
Description
General part information
M39029/5 Series
Socket Contact 20-24 AWG Size 20 Crimp Gold
Documents
Technical documentation and resources
No documents available
