LX8382-00CV

Obsolete

Microsemi Corporation

IC REG LIN POS ADJ 10A TO247-3

Search across all available documentation for this part.

Obsolete

Microsemi Corporation

IC REG LIN POS ADJ 10A TO247-3

Technical Specifications

Parameters and characteristics for this part

Specification	LX8382-00CV

Current - Output	10 A
Mounting Type	Through Hole
Number of Regulators	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	0 °C
Output Configuration	Positive
Output Type	Adjustable

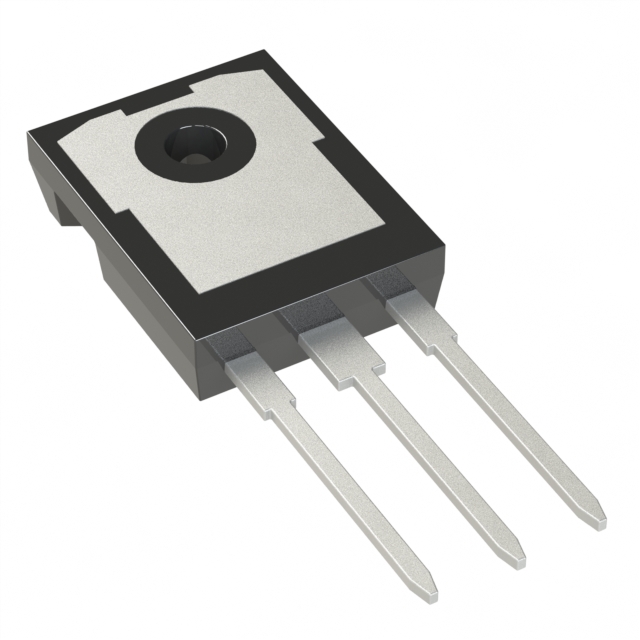

Package / Case	TO-247-3
Protection Features	Over Current, Over Temperature
PSRR	83 dB
Supplier Device Package	TO-247-3
Voltage - Input (Max) [Max]	10 V
Voltage - Output (Min/Fixed)	1.25 V
Voltage Dropout (Max) [Max]	1.4 V

Part	Operating Temperature [Max]	Voltage Dropout (Max) [Max]	Supplier Device Package	Voltage - Input (Max) [Max]	Current - Output	Protection Features	Mounting Type	Output Configuration	Output Type	Current - Quiescent (Iq)	Number of Regulators	Package / Case	Voltage - Output (Min/Fixed)	Output Type	PSRR
Microsemi Corporation LX8382A-33CV	125 °C	1.2 V	TO-247-3	10 V	10 A	Over Current Over Temperature	Through Hole	Positive	1.81 mOhm	10 mA	1	TO-247-3	3.3 V
Microsemi Corporation LX8382-00CP	125 °C	1.4 V	TO-220 Power	10 V	10 A	Over Current Over Temperature	Through Hole	Positive			1	TO-220-3	1.25 V	Adjustable	83 dB
Microsemi Corporation LX8382-33CP	125 °C	1.4 V	TO-220 Power	10 V	10 A	Over Current Over Temperature	Through Hole	Positive	1.81 mOhm	10 mA	1	TO-220-3	3.3 V
Microsemi Corporation LX8382A-00CP	125 °C	1.2 V	TO-220 Power	10 V	10 A	Over Current Over Temperature	Through Hole	Positive			1	TO-220-3	1.25 V	Adjustable	83 dB
Microsemi Corporation LX8382A-33CP	125 °C	1.2 V	TO-220 Power	10 V	10 A	Over Current Over Temperature	Through Hole	Positive	1.81 mOhm	10 mA	1	TO-220-3	3.3 V
Microsemi Corporation LX8382-00CV	125 °C	1.4 V	TO-247-3	10 V	10 A	Over Current Over Temperature	Through Hole	Positive			1	TO-247-3	1.25 V	Adjustable	83 dB
Microsemi Corporation LX8382A-00CV	125 °C	1.2 V	TO-247-3	10 V	10 A	Over Current Over Temperature	Through Hole	Positive			1	TO-247-3	1.25 V	Adjustable	83 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Adjustable 1 Output 10A TO-247-3
