K14-141.22100
ActiveEAO

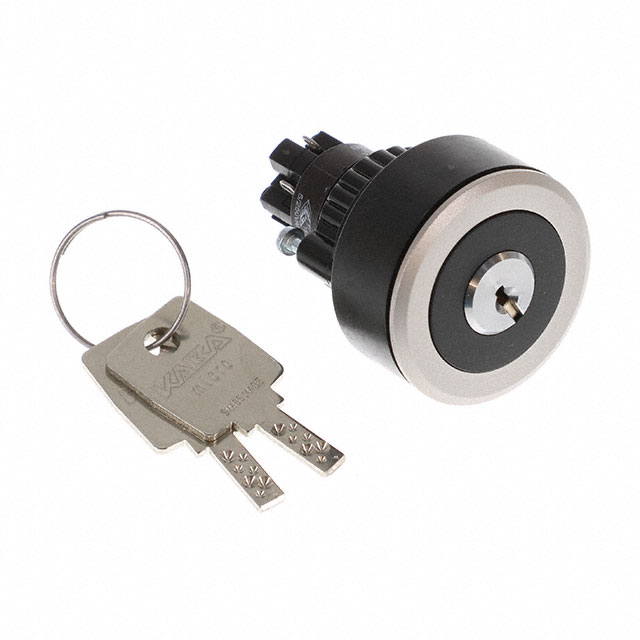

SWITCH KEYLOCK 2POS DPST 5A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
K14-141.22100
ActiveEAO
SWITCH KEYLOCK 2POS DPST 5A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | K14-141.22100 |
|---|---|
| Actuator Type | Flat Key |
| Angle of Throw | 42 ° |
| Circuit | DPST-NO/NC |
| Contact Finish | Gold |
| Contact Material | Silver (Ag) |
| Contact Timing | Not Specified |
| Current Rating (Amps) | 5 A |
| Depth Behind Flange | 46.5 mm |
| Features | IP65 |
| Key Removable Positions | 1 only |
| Mechanical Life | 2000000 Cycles |
| Number of Positions | 2 |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 30.5 mm |
| Switch Function | Off-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 77.23 | |
K14-141 Series
SWITCH KEYLOCK 2POS DPST 5A 250V
| Part | Features | Key Removable Positions | Actuator Type | Termination Style | Panel Cutout Dimensions [diameter] | Depth Behind Flange | Voltage Rating - AC | Contact Timing | Angle of Throw | Number of Positions | Current Rating (Amps) | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Contact Material | Mechanical Life | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IP65 | 1 only | Flat Key | Solder Lug | 30.5 mm | 46.5 mm | 250 V | Not Specified | 42 ° | 2 | 5 A | Off-Mom | 55 °C | -25 °C | Gold | Silver (Ag) | 2000000 Cycles | DPST-NO/NC |
Description
General part information
K14-141 Series
Keylock Switch 2 Position DPST-NO/NC 5A (AC) 250 VAC DC Panel Mount
