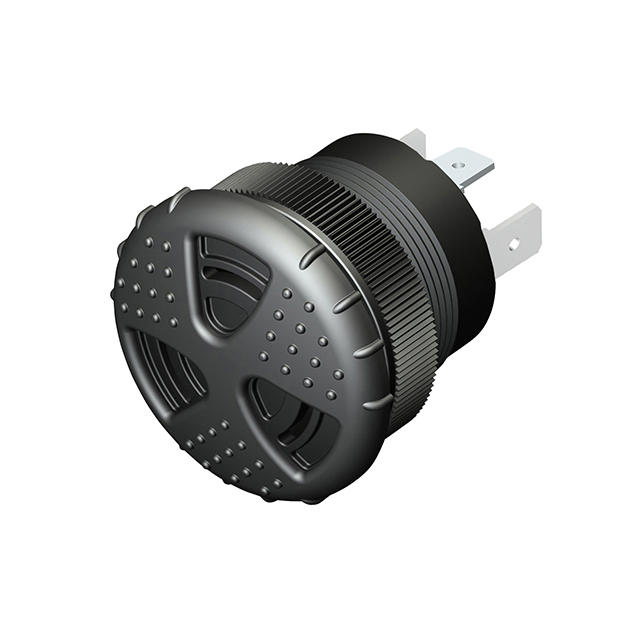

TXL7-V96-930-Q

Active

Floyd Bell Inc

BUZZER PIEZO 51.3MM PNL MNT

Search across all available documentation for this part.

Active

Floyd Bell Inc

BUZZER PIEZO 51.3MM PNL MNT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Buzzers Indicator, Internally Driven Piezo 15 ~ 45mA 1.8kHz 108dB @ 30V, 61cm Panel Mount Quick Connect Tab - 0.250" (6.35mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	TXL7-V96-930-Q	TXL7-V96 Series

Approval Agency	UR, UL	UR, UL
Current - Supply [Max]	45 mA	45 mA
Current - Supply [Min]	15 mA	15 mA
Driver Circuitry	Internally Driven, Indicator	Internally Driven, Indicator
Frequency	1.8 kHz	1.8 kHz
Height - Seated (Max) [Max] [z]	1.63 in	1.63 in
Height - Seated (Max) [Max] [z]	41.4 mm	41.4 mm
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Input Type	DC	DC
Operating Mode	Multiple Tone	Multiple Tone
Port Location	Top	Top
Size / Dimension [diameter]	2.02 in	2.02 in
Size / Dimension [diameter]	51.3 mm	51.3 - 51.31 mm
Sound Pressure Level (SPL)	108 dB	108 dB
Technology	Piezo	Piezo
Termination	Quick Connect Tab - 0.250" (6.35mm)	Quick Connect Tab - 0.250" (6.35mm), Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Voltage Range [Max]	30 V	30 V
Voltage Range [Min]	9 V	9 V

BUZZER PIEZO 51.3MM PNL MNT

Part	Ingress Protection	Driver Circuitry	Technology	Current - Supply [Min]	Current - Supply [Max]	Voltage Range [Min]	Voltage Range [Max]	Approval Agency	Sound Pressure Level (SPL)	Termination	Input Type	Port Location	Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Mode
Floyd Bell Inc TXL7-V96-930-Q	IP68 - Dust Tight, Waterproof	Indicator, Internally Driven	Piezo	15 mA	45 mA	9 V	30 V	UL, UR	108 dB	Quick Connect Tab - 0.250" (6.35mm)	DC	Top	1.8 kHz	2.02 in	51.3 mm	1.63 in	41.4 mm	Multiple Tone
Floyd Bell Inc TXL7-V96-930-S	IP68 - Dust Tight, Waterproof	Indicator, Internally Driven	Piezo	15 mA	45 mA	9 V	30 V	UL, UR	108 dB	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)	DC	Top	1.8 kHz	2.02 in	51.31 mm	1.63 in	41.4 mm	Multiple Tone
