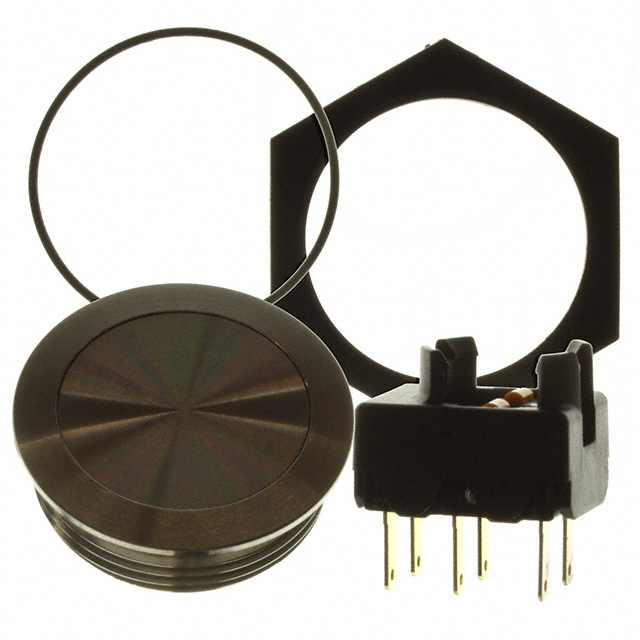

1241.6961.1120000

Active

SCHURTER Inc.

SWITCH PUSHBUTTON DPDT 5A 125V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSHBUTTON DPDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	1241.6961.1120000

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	5 A
Electrical Life	200000 Cycles
Ingress Protection	IP40
Mechanical Life	1500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	30.1 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal
Voltage Rating - AC	125 V

SWITCH PUSHBUTTON DPDT 5A 125V

Part	Electrical Life	Color - Actuator/Cap	Type	Actuator Type	Mounting Type	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Current Rating (Amps)	Switch Function	Mechanical Life	Circuit	Actuator Marking
SCHURTER Inc. 1241.6961.1120000	200000 Cycles	Silver	Anti-Vandal	Button, Flush, Round	Panel Mount, Front	125 V	30.1 mm	Quick Connect - 0.110" (2.8mm)	-25 °C	85 °C	IP40	5 A	On-Mom	1500000 Cycles	DPDT	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pushbutton Switch DPDT Anti-Vandal Panel Mount, Front
