EEG.0B.306.CLL
ActiveLEMO

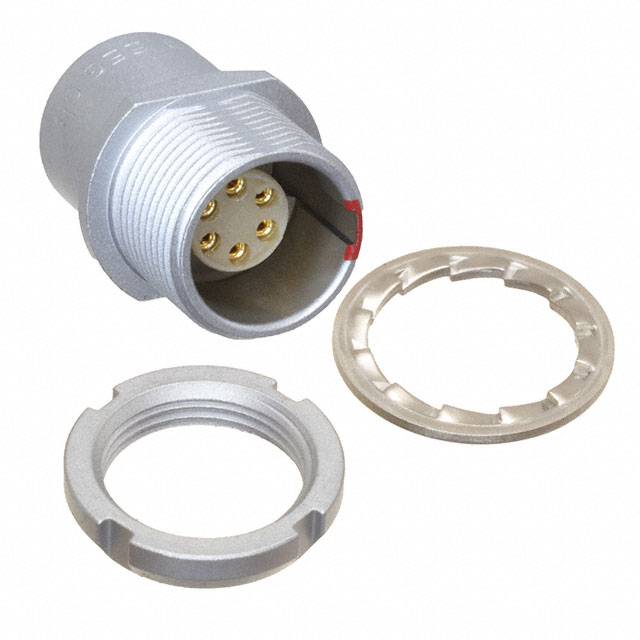

CONN RCPT FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EEG.0B.306.CLL
ActiveLEMO
CONN RCPT FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EEG.0B.306.CLL | EEG.0B Series |
|---|---|---|
| Color | Silver | Silver, Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 2.5 A | 2.5 - 8 A |
| Fastening Type | Push-Pull | Push-Pull |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | - | Through Hole, Panel Mount, Right Angle |
| Number of Positions | 6 | 4 - 7 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 306 | 303 - 307 |
| Shielding | Shielded | Shielded |
| Termination | - | Crimp, Solder |
EEG.0B Series
CONN RCPT FMALE 4POS GOLD CRIMP
| Part | Current Rating (Amps) | Shell Material | Contact Material | Mounting Feature | Orientation | Contact Finish - Mating | Color | Fastening Type | Termination | Shielding | Primary Material | Ingress Protection | Number of Positions | Shell Finish | Material Flammability Rating | Shell Size - Insert | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO EEG.0B.304.CYM | 7 A | Brass | Bronze | Bulkhead - Front Side Nut | G | Gold | Silver | Push-Pull | Crimp | Shielded | Metal | IP50 | 4 | Chrome | UL94 V-0 | 304 | -55 °C | 250 °C | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | Receptacle, Female Sockets | |
LEMO EEG.0B.307.CLN | 2.5 A | Brass | Bronze | Bulkhead - Front Side Nut | G | Gold | Silver | Push-Pull | Solder | Shielded | Metal | IP50 | 7 | Chrome | UL94 V-0 | 307 | -55 °C | 250 °C | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | Receptacle, Female Sockets | Panel Mount, Through Hole |
LEMO EEG.0B.306.CLV | 2.5 A | Brass | Bronze | Bulkhead - Front Side Nut | G | Gold | Silver | Push-Pull | Solder | Shielded | Metal | IP50 | 6 | Chrome | UL94 V-0 | 306 | -55 °C | 250 °C | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | Receptacle, Female Sockets | Panel Mount, Right Angle, Through Hole |
LEMO EEG.0B.307.CLV | 2.5 A | Brass | Bronze | Bulkhead - Front Side Nut | G | Gold | Silver | Push-Pull | Solder | Shielded | Metal | IP50 | 7 | Chrome | UL94 V-0 | 307 | -55 °C | 250 °C | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | Receptacle, Female Sockets | Panel Mount, Right Angle, Through Hole |
LEMO EEG.0B.304.CLL | 7 A | Brass | Bronze | Bulkhead - Front Side Nut | G | Gold | Silver | Push-Pull | Shielded | Metal | IP50 | 4 | Chrome | UL94 V-0 | 304 | -55 °C | 250 °C | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | Receptacle, Female Sockets | ||
LEMO EEG.0B.303.CLL | 8 A | Brass | Bronze | Bulkhead - Front Side Nut | G | Gold | Silver | Push-Pull | Shielded | Metal | IP50 | Chrome | UL94 V-0 | 303 | -55 °C | 250 °C | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | Receptacle, Female Sockets | |||
LEMO EEG.0B.303.CYM | 8 A | Brass | Bronze | Bulkhead - Front Side Nut | G | Gold | Silver | Push-Pull | Crimp | Shielded | Metal | IP50 | Chrome | UL94 V-0 | 303 | -55 °C | 250 °C | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | Receptacle, Female Sockets | ||
LEMO EEG.0B.305.CLL | 6.5 A | Brass | Bronze | Bulkhead - Front Side Nut | G | Gold | Silver | Push-Pull | Shielded | Metal | IP50 | Chrome | UL94 V-0 | 305 | -55 °C | 250 °C | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | Receptacle, Female Sockets | |||
LEMO EEG.0B.305.CLV | 6 A | Brass | Bronze | Bulkhead - Front Side Nut | G | Gold | Silver | Push-Pull | Solder | Shielded | Metal | IP50 | Chrome | UL94 V-0 | 305 | -55 °C | 250 °C | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | Receptacle, Female Sockets | Panel Mount, Right Angle, Through Hole | |
LEMO EEG.0B.306.CLL | 2.5 A | Brass | Bronze | Bulkhead - Front Side Nut | G | Gold | Silver | Push-Pull | Shielded | Metal | IP50 | 6 | Chrome | UL94 V-0 | 306 | -55 °C | 250 °C | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | Receptacle, Female Sockets |
