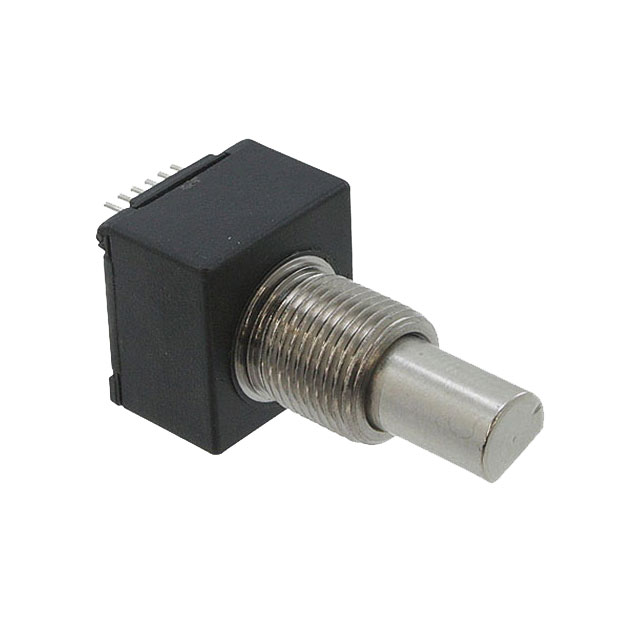

EM14A1B-C24-L032S
ActiveBourns Inc.
ROTARY ENCODER OPTICAL 32PPR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EM14A1B-C24-L032S
ActiveBourns Inc.
ROTARY ENCODER OPTICAL 32PPR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EM14A1B-C24-L032S |
|---|---|
| Actuator Type | 0.25 |
| Actuator Type | Flatted End |
| Built in Switch | True |
| Detent | True |
| Encoder Type | Optical |
| Mounting Type | PCB Through Hole, Panel |
| Orientation | Vertical |
| Output Type | Quadrature (Incremental) |
| Rotational Life (Cycles Min) | 200K |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 33.88 | |
| 5 | $ 29.09 | |||
| 10 | $ 27.23 | |||
| 45 | $ 23.58 | |||
| 90 | $ 22.06 | |||
| 135 | $ 21.21 | |||
| 270 | $ 19.85 | |||
Description
General part information
EM14A1B Series
Rotary Encoder Optical 32 Quadrature (Incremental) Vertical
