1106439-2
ActiveTE Connectivity AMP Connectors

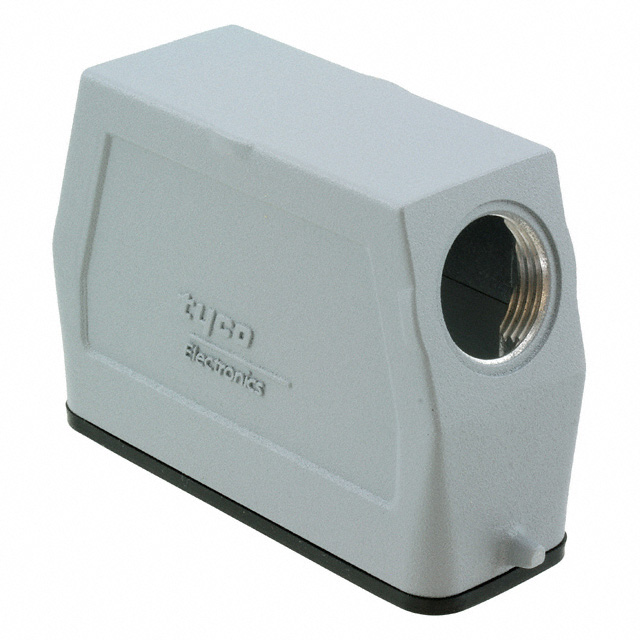

CONN HOOD SIDE ENTRY SZ5 M20
Deep-Dive with AI
Search across all available documentation for this part.
1106439-2
ActiveTE Connectivity AMP Connectors
CONN HOOD SIDE ENTRY SZ5 M20
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1106439-2 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Size | 5 |
| Size / Dimension [x] | 79.5 mm |
| Size / Dimension [x] | 3.13 " |
| Size / Dimension [y] | 29 mm |
| Size / Dimension [y] | 1.142 in |
| Size / Dimension [z] | 57.3 mm |
| Size / Dimension [z] | 2.256 " |
| Style | Side Entry |
| Thread Size | M20 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1106439 Series
CONN HOOD SIDE ENTRY SZ5 M20
| Part | Style | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Housing Finish | Housing Color | Thread Size | Lock Location | Connector Type | Size | Ingress Protection | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1106439-2 | Side Entry | 79.5 mm | 57.3 mm | 29 mm | 1.142 in | 2.256 " | 3.13 " | Powder Coated | Gray | M20 | Locking Clip (1) on Base Bottom | Hood | 5 | IP65 - Dust Tight, Water Resistant | Aluminum, Die Cast |
Description
General part information
1106439 Series
Hood Connector Side Entry M20 5 IP65 - Dust Tight, Water Resistant
