1554V2GYSL

Active

Hammond Manufacturing

BOX PC GRY /SM 9.45"L X 6.3"W

1554V2GYSL

Active

Hammond Manufacturing

BOX PC GRY /SM 9.45"L X 6.3"W

Description Specifications Series Pricing CAD Documents

Description

General part information

1554 Series

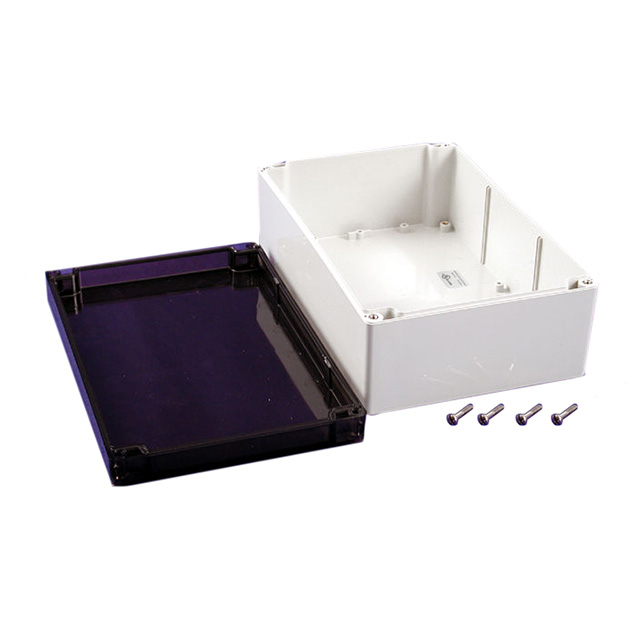

Box Polycarbonate Gray, Smoke Cover/Door Cover Included 9.449" L x 6.299" W (240.00mm x 160.00mm) X 3.543" (90.00mm)

Technical Specifications

Parameters and characteristics for this part

Specification	1554V2GYSL

Area (L x W)	59.5 in²
Color	Smoke Cover/Door, Gray
Container Type	Box
Design	Cover Included
Features	Watertight, Card Guides, PCB Supports
Height	3.543 in
Material	Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	12, NEMA 4, UL-508, 4X, 13, IP66
Size / Dimension Length	9.449 in
Size / Dimension Width	6.299 in
Thickness	0.128 in
Weight	1.4 lbs

1554 Series

...

Part	Material	Design	Size / Dimension Width	Size / Dimension Length	Ratings	Color	Container Type	Features	Thickness	Height	Material Flammability Rating	Area (L x W)	Weight	Material Flammability Rating - Level	Material Flammability Rating - Code	For Use With/Related Products	Accessory Type	Type	Size / Dimension Height
Hammond Manufacturing 1554BGY	ABS Polycarbonate	Cover Included	2.559 in	2.559 in	12 13 4X IP66 NEMA 4	Gray	Box	Watertight	0.118 in	1.575 in	UL94 HB	6.55 in²
Hammond Manufacturing 1554V2GYSL	Polycarbonate	Cover Included	6.299 in	9.449 in	12 13 4X IP66 NEMA 4 UL-508	Gray Smoke Cover/Door	Box	Card Guides PCB Supports Watertight	0.128 in	3.543 in	UL94 V-0	59.5 in²	1.4 lbs
Hammond Manufacturing 1554Y2GYCL	Polycarbonate	Cover Included Hand Held	9.45 in	11.81 in	12 13 4X 6 6P IP68 NEMA 4 UL-508	Clear Cover/Door Gray	Box		0.16 in	3.74 in	UL94 5VA	112 in²		5	UL94
Hammond Manufacturing 1554VGASKET																1554V Series	Gasket Seal
Hammond Manufacturing 1554YPL	Steel		8.86 in	11.2 in		Unpainted										1554X 1554XA Series		Inner Panel	0.06 in
Hammond Manufacturing 1554T2GYCL	Polycarbonate	Cover Included	4.724 in	7.087 in	12 13 4X IP68 NEMA 4 UL-508	Clear Cover/Door Gray	Box	Card Guides PCB Supports Watertight	0.118 in	3.543 in	UL94 5VA	33.5 in²	0.38 lb	5	UL94
Hammond Manufacturing 1554EPL	Polycarbonate (PC)		3.05 in	3.087 in		Unpainted										1554 1555 Series		Inner Panel
Hammond Manufacturing 1554FPL	Steel		3.05 in	4.3 in		Unpainted										1554 1555 Series		Inner Panel
Hammond Manufacturing 1554MPB2	Plastic Polycarbonate	Cover Included	3.5 in	6.3 in	12 13 4X IP66 NEMA 4	Gray	Box	2 Card Guides PCB Supports Pushbutton Holes		2.4 in	UL94 5VA	22.1 in²	0.52 lb	5	UL94
Hammond Manufacturing 1554P2GYCL	Polycarbonate	Cover Included	4.724 in	4.724 in	12 13 4X IP68 NEMA 4 UL-508	Clear Cover/Door Gray	Box	Card Guides PCB Supports Watertight	0.118 in	3.15 in	UL94 5VA	22.3 in²	0.6 lb	5	UL94

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

1554V2GYSL | Datasheet
