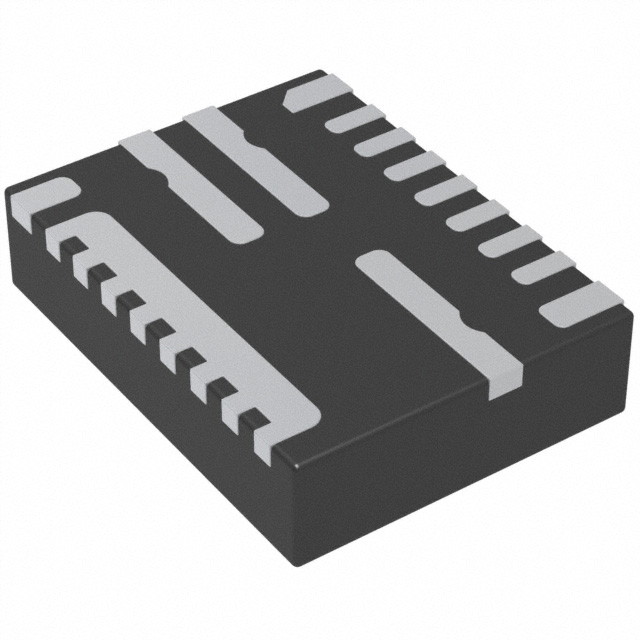

MPQ8633AGLE-P

Active

MONOLITHIC POWER SYSTEMS (MPS)

SWITCHING REGULATOR, 12A, 1150KHZ SWITCHING FREQ-MAX, QFN-21

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MPQ8633AGLE-P

Active

MONOLITHIC POWER SYSTEMS (MPS)

SWITCHING REGULATOR, 12A, 1150KHZ SWITCHING FREQ-MAX, QFN-21

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MPQ8633AGLE-P

Current - Output	12 A
Frequency - Switching [Max]	1 MHz
Frequency - Switching [Min]	600 kHz
Function	Step-Down
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Adjustable
Supplier Device Package	21-QFN (3x4)
Synchronous Rectifier	True
Topology	Buck
Voltage - Input (Max) [Max]	16 V
Voltage - Input (Min) [Min]	2.7 V
Voltage - Output (Max) [Max]	5.5 V
Voltage - Output (Min/Fixed)	0.6 V

MPQ8633 Series

Part	Voltage - Input (Max) [Max]	Function	Frequency - Switching [Min]	Frequency - Switching [Max]	Voltage - Output (Min/Fixed)	Voltage - Output (Max) [Max]	Topology	Mounting Type	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Number of Outputs	Voltage - Input (Min) [Min]	Supplier Device Package	Current - Output	Frequency - Switching	Main Purpose	Voltage - Output	Regulator Topology	Voltage - Input [Max]	Voltage - Input [Min]	Outputs and Type	Outputs and Type	Supplied Contents	Board Type	Utilized IC / Part	Grade	Qualification
MONOLITHIC POWER SYSTEMS (MPS) MPQ8633BGLE-Z	16 V	Step-Down	600 kHz	1 MHz	0.6 V	5.5 V	Buck	Surface Mount	Positive	-40 °C	125 ¯C	Adjustable	1	2.7 V	21-QFN (3x4)	20 A
MONOLITHIC POWER SYSTEMS (MPS) MPQ8633AGL-P	16 V	Step-Down			0.6 V	5.5 V	Buck	Surface Mount	Positive	-40 °C	125 ¯C	Adjustable	1	4 V	20-QFN (3x4)	12 A	1 MHz 600 kHz 800 kHz
MONOLITHIC POWER SYSTEMS (MPS) MPQ8633A-HGLE-P	16 V	Step-Down			0.6 V	5.5 V	Buck	Surface Mount	Positive	-40 °C	125 ¯C	Adjustable	1	4 V	21-QFN (3x4)	12 A	1 MHz 600 kHz 800 kHz
MONOLITHIC POWER SYSTEMS (MPS) MPQ8633BGLE-P	16 V	Step-Down	600 kHz	1 MHz	0.6 V	5.5 V	Buck	Surface Mount	Positive	-40 °C	125 ¯C	Adjustable	1	2.7 V	21-QFN (3x4)	20 A
MONOLITHIC POWER SYSTEMS (MPS) MPQ8633AGL-Z	16 V	Step-Down			0.6 V	5.5 V	Buck	Surface Mount	Positive	-40 °C	125 ¯C	Adjustable	1	2.7 V	20-QFN (3x4)	12 A	1 MHz 600 kHz 800 kHz
MONOLITHIC POWER SYSTEMS (MPS) MPQ8633B-HGLE-P	16 V	Step-Down			0.6 V	5.5 V	Buck	Surface Mount	Positive	-40 °C	125 ¯C	Adjustable	1	4 V	21-QFN (3x4)	20 A	1 MHz 600 kHz 800 kHz
MONOLITHIC POWER SYSTEMS (MPS) EVQ8633B-H-LE-00A																20 A		DC/DC Step Down	1 V	Buck	16 V	8 V	Non-Isolated	1	Board(s)	Fully Populated	MPQ8633B-H
MONOLITHIC POWER SYSTEMS (MPS) MPQ8633AGLE-P	16 V	Step-Down	600 kHz	1 MHz	0.6 V	5.5 V	Buck	Surface Mount	Positive	-40 °C	125 ¯C	Adjustable	1	2.7 V	21-QFN (3x4)	12 A
MONOLITHIC POWER SYSTEMS (MPS) MPQ8633A-HGLE-Z	16 V	Step-Down			0.6 V	5.5 V	Buck	Surface Mount	Positive	-40 °C	125 ¯C	Adjustable	1	2.7 V	21-QFN (3x4)	12 A	1 MHz 600 kHz 800 kHz											Automotive	AEC-Q100
MONOLITHIC POWER SYSTEMS (MPS) MPQ8633AGLE-Z	16 V	Step-Down	600 kHz	1 MHz	0.6 V	5.5 V	Buck	Surface Mount	Positive	-40 °C	125 ¯C	Adjustable	1	2.7 V	21-QFN (3x4)	12 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.75
		10	$ 5.17
		25	$ 4.89
		100	$ 4.23
		250	$ 4.02
	Digi-Reel®	1	$ 5.75
		10	$ 5.17
		25	$ 4.89
		100	$ 4.23
		250	$ 4.02
	Tape & Reel (TR)	500	$ 3.60
		1000	$ 3.04
		2500	$ 2.89

Description

General part information

MPQ8633 Series

Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 12A 21-PowerVFQFN
