UAD28

Active

Cinch Connectivity Solutions Trompeter

CONN ADAPT JACK-JACK BNC 75 OHM

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN ADAPT JACK-JACK BNC 75 OHM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UAD28	UAD Series

Adapter Series	BNC to BNC	BNC to BNC, TNC to TNC, Mini to BNC, BNC, Mini, BNC to N
Adapter Type	Jack to Jack	Jack to Jack, Plug to Jack
Body Finish	-	Nickel
Body Material	-	Brass
Center Contact Plating	-	Gold
Center Gender	Female to Female	Female to Female
Conversion Type	Same Series	Same Series, Between Series
Convert From (Adapter End)	BNC Jack, Female Socket	BNC Jack, Female Socket, TNC Jack, Female Socket, BNC Mini Jack, Female Socket
Convert To (Adapter End)	Female Socket, BNC Jack	Female Socket, BNC Jack, TNC Jack, BNC Plug, Male Pin, BNC Mini Jack, N Jack
Fastening Type	Bayonet Lock	Bayonet Lock, Threaded
Frequency - Max [Max]	500 MHz	1 - 500 MHz
Impedance	75 Ohms	75 Ohms
Includes	-	1 Nut, 1 Connector, 1 Lockwasher
Mounting Feature	-	Bulkhead
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Style	Straight	Straight, Right Angle

CONN ADAPT JACK-JACK BNC 75 OHM

Part	Convert From (Adapter End)	Center Gender	Fastening Type	Impedance	Conversion Type	Frequency - Max [Max]	Style	Convert To (Adapter End)	Adapter Type	Adapter Series	Mounting Type	Body Finish	Body Material	Center Contact Plating	Includes	Mounting Feature
Cinch Connectivity Solutions Trompeter UAD28	BNC Jack, Female Socket	Female to Female	Bayonet Lock	75 Ohms	Same Series	500 MHz	Straight	BNC Jack, Female Socket	Jack to Jack	BNC to BNC	Free Hanging (In-Line)
Cinch Connectivity Solutions Trompeter UAD48	TNC Jack, Female Socket	Female to Female		75 Ohms	Same Series		Straight	Female Socket, TNC Jack	Jack to Jack	TNC to TNC	Free Hanging (In-Line)
Cinch Connectivity Solutions Trompeter UADRMF220	BNC Jack, Female Socket		Bayonet Lock	75 Ohms	Same Series	4 GHz	Right Angle	BNC Plug, Male Pin	Plug to Jack	BNC to BNC	Free Hanging (In-Line), Right Angle	Nickel
Cinch Connectivity Solutions Trompeter UAD258	BNC Mini Jack, Female Socket	Female to Female	Bayonet Lock	75 Ohms	Same Series	1 GHz	Straight	BNC Mini Jack, Female Socket	Jack to Jack	BNC, Mini, Mini to BNC	Free Hanging (In-Line)	Nickel	Brass	Gold
Cinch Connectivity Solutions Trompeter UAD95	BNC Jack, Female Socket	Female to Female	Bayonet Lock, Threaded	75 Ohms	Between Series	4 GHz	Straight	Female Socket, N Jack	Jack to Jack	BNC to N		Nickel	Brass	Gold	1 Connector, 1 Lockwasher, 1 Nut	Bulkhead
Cinch Connectivity Solutions Trompeter UAD228	BNC Jack, Female Socket	Female to Female	Bayonet Lock	75 Ohms	Same Series	4 GHz	Straight	BNC Jack, Female Socket	Jack to Jack	BNC to BNC	Free Hanging (In-Line)	Nickel	Brass	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

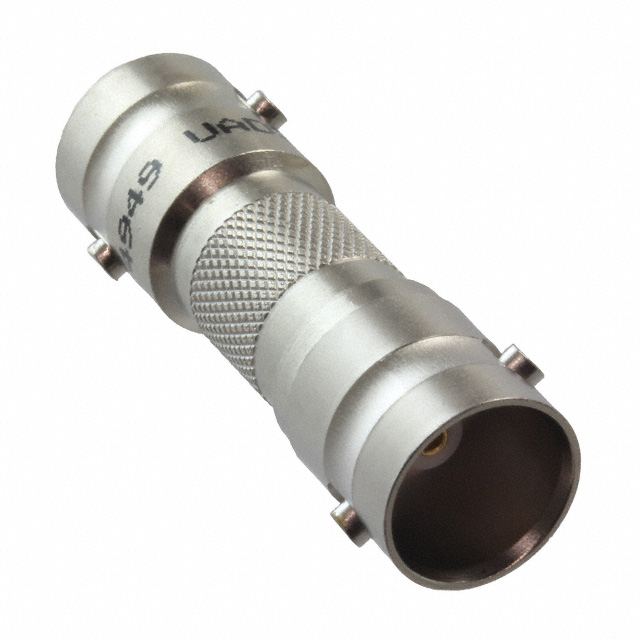

Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 75 Ohms
